Explain SQL optimization in detail

yesterday （2022-7-22） One of my functions has been launched , The amount of test environment data is small , No big problem , But after production , It's stuck , Then it started like this SQL Optimize , Here is a record of .

It is not convenient to disclose the table structure of the company , Here I have built several tables by myself , Just simulate it .

There must be a bar essence. To say that the watch can not be designed like this , But in fact, this is how the system is designed , If you want to change the table design , The impact is too large （ We are eager to go online ）. Of course , Later in this article, the scheme of modifying the design will also be given , To achieve a better solution .

1.  Create table

Purchase order form ：

CREATE TABLE `purchase_order` ( `id` int(11) NOT NULL AUTO_INCREMENT COMMENT ' The primary key increases automatically id', `purchase_time` varchar(255) DEFAULT NULL COMMENT ' Purchase time ', `purchase_pre_unit_price` decimal(10,2) unsigned zerofill NOT NULL COMMENT ' Purchase reservation unit price ( element /kg)', `purchase_weight` decimal(10,2) unsigned zerofill NOT NULL COMMENT ' Incoming weight (kg)', `purchase_bill_no` varchar(255) NOT NULL COMMENT ' Purchase order No ', PRIMARY KEY (`id`)) ENGINE=InnoDB AUTO_INCREMENT=62181 DEFAULT CHARSET=utf8 COMMENT=' Purchase order ';

Purchase statement ：

CREATE TABLE `settlement_voucher` ( `id` int(11) NOT NULL AUTO_INCREMENT COMMENT ' Self increasing ID', `purchase_bill_no` varchar(512) DEFAULT NULL COMMENT ' Purchase order No ', `settlement_bill_no` varchar(64) NOT NULL COMMENT ' Settlement doc No ', `unit_price` decimal(10,2) unsigned zerofill NOT NULL COMMENT ' Actual settlement unit price （ element /kg）', `settlement_weight` decimal(10,2) unsigned zerofill NOT NULL COMMENT ' Actual settlement weight （kg）', `cut_off_time` datetime DEFAULT NULL ON UPDATE CURRENT_TIMESTAMP COMMENT ' Settlement time ', PRIMARY KEY (`id`), KEY `idx_settlement_bill_no` (`settlement_bill_no`)) ENGINE=InnoDB AUTO_INCREMENT=63288 DEFAULT CHARSET=utf8 COMMENT=' Purchase statement ';

Invoice form ：

CREATE TABLE `invoice` ( `id` int(11) NOT NULL AUTO_INCREMENT COMMENT ' Primary key ID', `invoice_code` varchar(255) NOT NULL COMMENT ' Invoice code ', `invoice_number` varchar(255) NOT NULL COMMENT ' Invoice number ', `pay_amount` decimal(10,2) DEFAULT NULL COMMENT ' Invoice amount ', PRIMARY KEY (`id`), KEY `idx_invoice_number` (`invoice_number`)) ENGINE=InnoDB DEFAULT CHARSET=utf8 COMMENT=' Invoice form ';

invoice - Statement related table ：

CREATE TABLE `settlement_invoice_relation` ( `id` int(11) NOT NULL AUTO_INCREMENT COMMENT ' Primary key ID', `invoice_code` varchar(255) DEFAULT NULL COMMENT ' Invoice code ', `invoice_number` varchar(255) DEFAULT NULL COMMENT ' Invoice number ', `settlement_bill_no` varchar(64) DEFAULT NULL COMMENT ' Settlement doc No ', PRIMARY KEY (`id`), KEY `idx_settlement_bill_no` (`settlement_bill_no`), KEY `idx_invoice_number` (`invoice_number`)) ENGINE=InnoDB DEFAULT CHARSET=utf8 COMMENT=' invoice - Statement related table ';

These are the tables I created myself , First, let's introduce the relationship between these tables ：

• Purchase order form (purchase_order) And purchase statement (settlement_voucher) Through the purchase order number (purchase_bill_no) relation . Here's what's interesting ： One purchase order can correspond to multiple purchase settlement documents , adopt purchase_bill_no relation , As shown in the following data ： One purchase settlement document can correspond to multiple purchase orders , adopt purchase_bill_no relation ,settlement_voucher In the table purchase_bill_no The field stores multiple purchase orders , Use English commas to separate . As shown in the following data ：

• Invoice form (invoice) And statement of accounts (settlement_voucher) There is an association table (settlement_invoice_relation) Invoice table and association table use invoice_code and invoice_number Use of related settlement document table and related relationship table settlement_bill_no Related invoices and settlement documents have a many to many relationship

2.  demand

Now you need to use the purchase statement (settlement_voucher) Query out a list ：

• The list field has 【 Purchase time ( Multiple commas are used to separate )、 Average purchase unit price 、 Total scheduled purchase amount , Settlement doc No , Average unit price of settlement , Settlement amount , Settlement time , Invoice number ( Multiple commas are used to separate ), Invoice code ( Multiple commas are used to separate )】

• The query conditions are ： Purchase time ( When one purchase settlement document corresponds to multiple purchase documents , As long as there is a purchase order within the time range , Just find out ), Settlement time , Invoice number ( When a settlement document corresponds to multiple invoices , As long as there is an invoice that can be associated , Just find out )

• Sort according to the settlement time

Of course , The actual demand at that time , There are more list fields , There are more query conditions than this ......

3.  Insert data into a table

First, give the bill of lading (purchase_order) And purchase statement (settlement_voucher) Insert each 10 Ten thousand data , I use stored procedures here ：

begindeclare i int; declare purchase_weight decimal(10,2);declare unit_price decimal(10,2);declare purchase_bill_no varchar(255);declare settlement_bill_no varchar(255);set i=0;while i<100000 do select ROUND(RAND()*100,2) into purchase_weight from dual; select ROUND(RAND()*10,2) into unit_price from dual; select CONCAT('purchase-',LPAD(i,8,'0')) into purchase_bill_no from dual; select CONCAT('settlement-',LPAD(i,8,'0')) into settlement_bill_no from dual;  --  Insert the purchase order table , The purchase time is randomly generated insert into purchase_order(purchase_time,purchase_pre_unit_price,purchase_weight,purchase_bill_no)  select (DATE_ADD(NOW(), INTERVAL FLOOR(1 - (RAND() * 864000)) SECOND )), unit_price,purchase_weight,purchase_bill_no from dual; --  Insert statement , The settlement time is randomly generated insert into settlement_voucher(purchase_bill_no,settlement_bill_no,unit_price,settlement_weight,cut_off_time) select purchase_bill_no,settlement_bill_no,unit_price,purchase_weight, (DATE_ADD(NOW(), INTERVAL FLOOR(1 - (RAND() * 864000)) SECOND )) from dual;set i=i+1; end while;end

Call stored procedure to generate data ：

call pre();

After generation, you need to change several pieces of data randomly , Simulate that one purchase order can correspond to multiple purchase settlement documents , And one purchase settlement document can correspond to multiple purchase orders （ In this way, the data is more realistic ）.

The situation that one purchase order can correspond to multiple purchase settlement documents is not simulated , In fact, this situation has little impact on this query .

One purchase settlement document can correspond to multiple purchase orders ：

Create some invoice data and settlement documents - Invoice related data , Need to reflect the many to many relationship ：

insert into invoice(invoice_code,invoice_number,pay_amount)VALUES('111111','1111100','1000'),('111112','1111101','1001'),('111113','1111102','1002'),('111114','1111103','1003'),('111115','1111104','1004'),('111116','1111105','1005'),('111117','1111106','1006'),('111118','1111107','1007'),('111119','1111108','1008'),('111110','1111109','1009'); INSERT into settlement_invoice_relation(invoice_code,invoice_number,settlement_bill_no)VALUES('111111','1111100','settlement-00000000'),('111112','1111101','settlement-00000000'),('111113','1111102','settlement-00000000'),('111114','1111103','settlement-00000004'),('111114','1111103','settlement-00000006'),('111114','1111103','settlement-00000030'),('111116','1111105','settlement-00000041'),('111117','1111106','settlement-00000041'),('111118','1111107','settlement-00000043');

4.  Start writing according to your needs SQL

The first step of optimization , Of course, I want the product manager to remove some query conditions , Avoid associating the purchase order table with the purchase settlement table , But you know ......

Here, take the purchase time as an example （ Because it is mainly the association between the purchase order and the purchase settlement order that leads to slow query ）,

Remember the demand , One purchase settlement may correspond to multiple purchase orders , As long as one of the purchase orders is within the time range , You need to find out this purchase settlement

also ： The index in the table I created above also simulates the index before optimization at that time ......

4.1  The first edition

select  GROUP_CONCAT(po.purchase_time) as  Purchase time , AVG(IFNULL(po.purchase_pre_unit_price,0)) as  Average purchase price , t.settlement_bill_no as  Settlement doc No , AVG(IFNULL(t.unit_price,0)) as  Average settlement price , any_value(t.cut_off_time) as  Settlement time , any_value(invoice_tmp.invoice_code) as  Invoice code , any_value(invoice_tmp.invoice_number) as  Invoice number from settlement_voucher tleft join purchase_order po on FIND_IN_SET(po.purchase_bill_no,t.purchase_bill_no)>0left join ( select sir.settlement_bill_no,  GROUP_CONCAT(i.invoice_number) invoice_number,  GROUP_CONCAT(i.invoice_code) invoice_code  from settlement_invoice_relation sir, invoice i  where sir.invoice_code = i.invoice_code and sir.invoice_number = i.invoice_number  group by sir.settlement_bill_no) invoice_tmp on invoice_tmp.settlement_bill_no = t.settlement_bill_nowhere 1=1 -- and t.settlement_bill_no='settlement-00000000'and EXISTS(select 1 from purchase_order po1 where FIND_IN_SET(po1.purchase_bill_no,t.purchase_bill_no)>0 and po1.purchase_time >='2022-07-01 00:00:00' )and EXISTS(select 1 from purchase_order po1 where FIND_IN_SET(po1.purchase_bill_no,t.purchase_bill_no)>0 and po1.purchase_time <='2022-07-23 23:59:59' )group by t.settlement_bill_no;

The first edition SQL At that time, it was implemented in the local environment with 5 About seconds , At this time, I have realized the problem , Let alone production , I have to hang up in the test environment .

But look at my own garbage server （ Dual core 4G） Run on this SQL Well , It can't be implemented at all （ Although the company server is better , But the production environment is really stuck ）：

I haven't seen the implementation plan at that time , In a glance , This SQL Used in the FIND_IN_SET, I'm sure I won't go to the index , It's useless to build an index , That is, mainly the purchase order table (purchase_order) And purchase statement settlement_voucher Correlation will be slow , After all, they have a many to many relationship , Plus this disgusting need . So now think about how to avoid  FIND_IN_SET.

Yes , During the meal , A whim ： I should be able to split the purchase statement into a temporary table , If the purchase settlement sheet corresponds to 5 A purchase order , I'll split the purchase statement into 5 Data , These five data are different except for the purchase order number , Other fields   equally , So that you don't have to FIND_IN_SET 了 .

Do as you say , So there is the second edition below SQL.

4.2  The second edition

Split the purchase statement into the above-mentioned temporary table , You need to add a table ：

CREATE TABLE `incre_table` ( `id` int(11) NOT NULL AUTO_INCREMENT, PRIMARY KEY (`id`)) ENGINE=InnoDB DEFAULT CHARSET=utf8 COMMENT=' Used to split purchase settlement sheet ';--  Be careful ： How many purchase orders does a purchase settlement correspond to , Here is how many pieces of data to insert in turn , I'm here 10 strip   That's enough. insert into incre_table(id) VALUES(1);insert into incre_table(id) VALUES(2);insert into incre_table(id) VALUES(3);insert into incre_table(id) VALUES(4);insert into incre_table(id) VALUES(5);insert into incre_table(id) VALUES(6);insert into incre_table(id) VALUES(7);insert into incre_table(id) VALUES(8);insert into incre_table(id) VALUES(9);insert into incre_table(id) VALUES(10);

First, let's see how to split a purchase settlement into multiple pieces ：

select  sv.cut_off_time, sv.settlement_bill_no, sv.unit_price, sv.settlement_weight, SUBSTRING_INDEX(SUBSTRING_INDEX(sv.purchase_bill_no,',',it.id),',',-1) purchase_bill_nofrom settlement_voucher svRIGHT JOIN incre_table it on it.id<=(LENGTH(sv.purchase_bill_no) - LENGTH(REPLACE(sv.purchase_bill_no,',','')) + 1)where sv.settlement_bill_no='settlement-00000000';

To explain this operation ：

• First of all, I created a system with only id Table of incre_table, Ten pieces of data are inserted , And these ten data must be 1-10.

• And then I use settlement_voucher  Right connected  incre_table, And only take incre_table in id Data less than or equal to the quantity of the purchase order . This will control this one SQL How many pieces of data should be queried （ It just happens to be the number of purchase orders corresponding to a purchase settlement ）.

• And then use SUBSTRING_INDEX To split one by one settlement_voucher The purchase order number in the table

This set of SQL The result of execution is ：

combined , I finished the Second Edition SQL：

select  GROUP_CONCAT(po.purchase_time) as  Purchase time , AVG(IFNULL(po.purchase_pre_unit_price,0)) as  Average purchase price , t.settlement_bill_no as  Settlement doc No , AVG(IFNULL(t.unit_price,0)) as  Average settlement price , any_value(t.cut_off_time) as  Settlement time , any_value(invoice_tmp.invoice_code) as  Invoice code , any_value(invoice_tmp.invoice_number) as  Invoice number from ( select  sv.cut_off_time, sv.settlement_bill_no, sv.unit_price, sv.settlement_weight, SUBSTRING_INDEX(SUBSTRING_INDEX(sv.purchase_bill_no,',',it.id),',',-1) purchase_bill_no from settlement_voucher sv RIGHT JOIN incre_table it on it.id<=(LENGTH(sv.purchase_bill_no) - LENGTH(REPLACE(sv.purchase_bill_no,',','')) + 1)) tleft join purchase_order po on po.purchase_bill_no = t.purchase_bill_noleft join ( select sir.settlement_bill_no,  GROUP_CONCAT(i.invoice_number) invoice_number,  GROUP_CONCAT(i.invoice_code) invoice_code  from settlement_invoice_relation sir, invoice i  where sir.invoice_code = i.invoice_code and sir.invoice_number = i.invoice_number  group by sir.settlement_bill_no) invoice_tmp on invoice_tmp.settlement_bill_no = t.settlement_bill_nowhere 1=1 -- and t.settlement_bill_no='settlement-00000000'and po.purchase_time >='2022-07-01 00:00:00' and po.purchase_time <='2022-07-23 23:59:59' group by t.settlement_bill_no; Fold

There must be no problem with the test query data results ！！！

well , Here we finally use everything FIND_IN_SET The place of , At this time, it is meaningful to look at the index ！

Look at the implementation plan ：

Asiba , A bunch of full table scans , Look at the second edition above SQL, Find the purchase list (purchase_order) Of purchase_bill_no Fields should be indexed , In principle, this field should have been quoted when designing tables , But I thought it was just that I thought , It's really not indexed , well , Then add an index to it ：

create index idx_purchase_bill_no on purchase_order(purchase_bill_no);

After adding this index , Let's look at the implementation plan ：

purchase_order Tabular purchase_bill_no Already gone , however settlement_invoice_relation Why not go to the index , It has two indexes ......

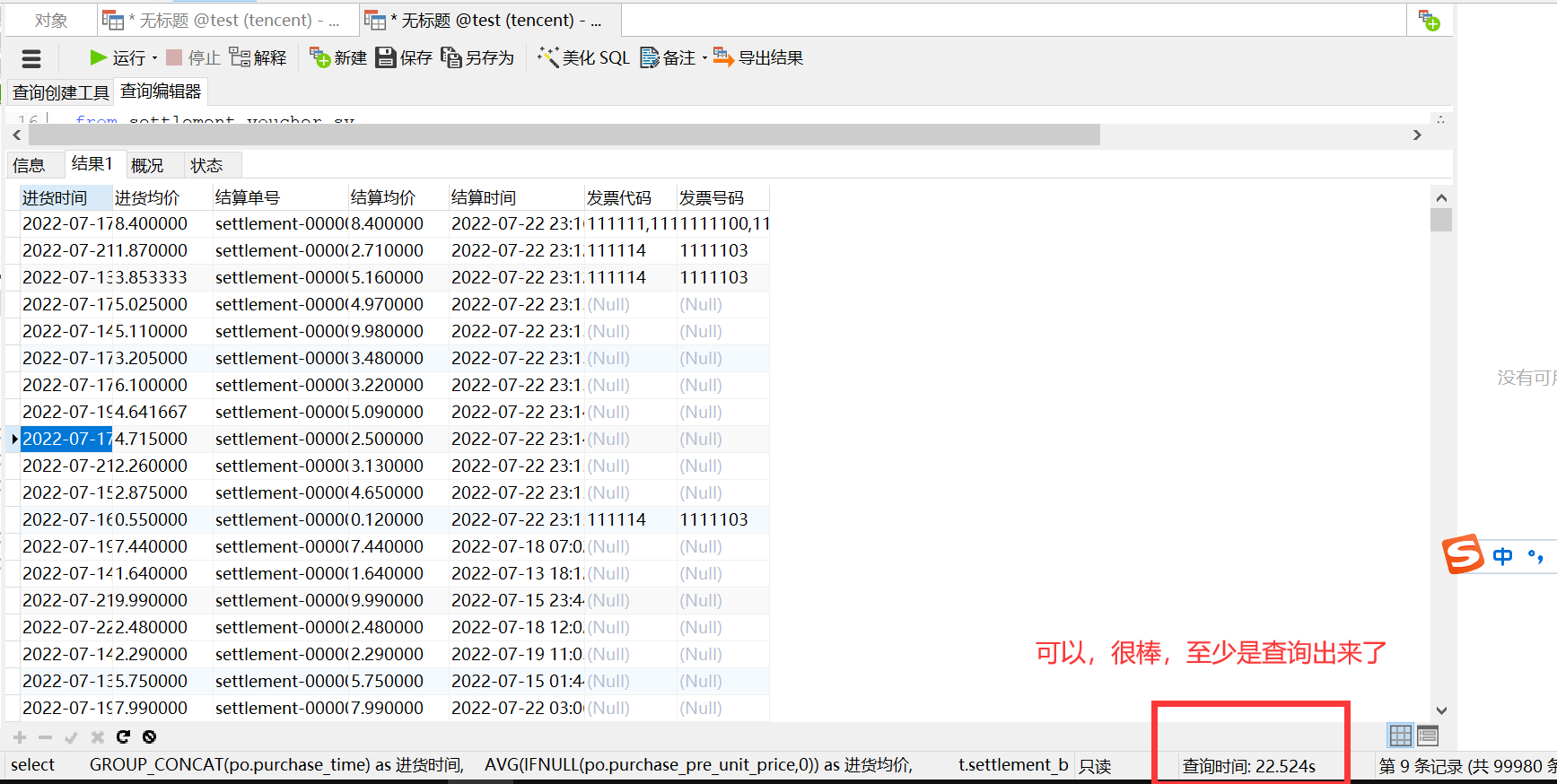

Take another look at the execution on my garbage server , See if it can be implemented ：

Okay , In order to make settlement_invoice_relation The query of the table also goes through the index , Start the next round of SQL Optimize

4.3  The third edition

Don't aggregate and obtain below invoice_code and invoice_number 了 , Aggregate on it , As for using these two fields as query criteria , Then you can put this one below SQL Another layer of , Query again as a temporary table , I'm not going to do that here

select  GROUP_CONCAT(po.purchase_time) as  Purchase time , AVG(IFNULL(po.purchase_pre_unit_price,0)) as  Average purchase price , t.settlement_bill_no as  Settlement doc No , AVG(IFNULL(t.unit_price,0)) as  Average settlement price , any_value(t.cut_off_time) as  Settlement time , GROUP_CONCAT(DISTINCT invoice_tmp.invoice_code) as  Invoice code , GROUP_CONCAT(DISTINCT invoice_tmp.invoice_number) as  Invoice number from ( select  sv.cut_off_time, sv.settlement_bill_no, sv.unit_price, sv.settlement_weight, SUBSTRING_INDEX(SUBSTRING_INDEX(sv.purchase_bill_no,',',it.id),',',-1) purchase_bill_no from settlement_voucher sv RIGHT JOIN incre_table it on it.id<=(LENGTH(sv.purchase_bill_no) - LENGTH(REPLACE(sv.purchase_bill_no,',','')) + 1)) tleft join purchase_order po on po.purchase_bill_no = t.purchase_bill_noleft join ( select sir.settlement_bill_no,  i.invoice_number,  i.invoice_code  from settlement_invoice_relation sir, invoice i  where sir.invoice_code = i.invoice_code and sir.invoice_number = i.invoice_number ) invoice_tmp on invoice_tmp.settlement_bill_no = t.settlement_bill_nowhere 1=1 -- and t.settlement_bill_no='settlement-00000000'and po.purchase_time >='2022-07-01 00:00:00' and po.purchase_time <='2022-07-23 23:59:59' group by t.settlement_bill_no; Fold

Let's look at the implementation plan ：

At this time , Basic optimization is over , Look at the results on my spam server ：

Come here , Basically, the production can be found in less than three seconds , This time SQL Optimization is over ！！！

however , In fact, we can continue to optimize , But there are many changes in the design to the system , The impact is relatively large , Let's talk about the train of thought , Temporarily unable to practice ：

You can list the purchase order purchase_order And purchase statement settlement_voucher Between , Create a middle table , Implement many to many relationships , Then index , It should be faster , And it can be done once and for all , In the future, this connection will be more convenient ！
