[TA frost wolf umay - "hundred people plan] Figure 3.3 surface subdivision and geometric shader large-scale grass rendering

3.3.1 Application of surface subdivision shader

1. The waves of the sea 、 The snow
2. Combination with displacement mapping

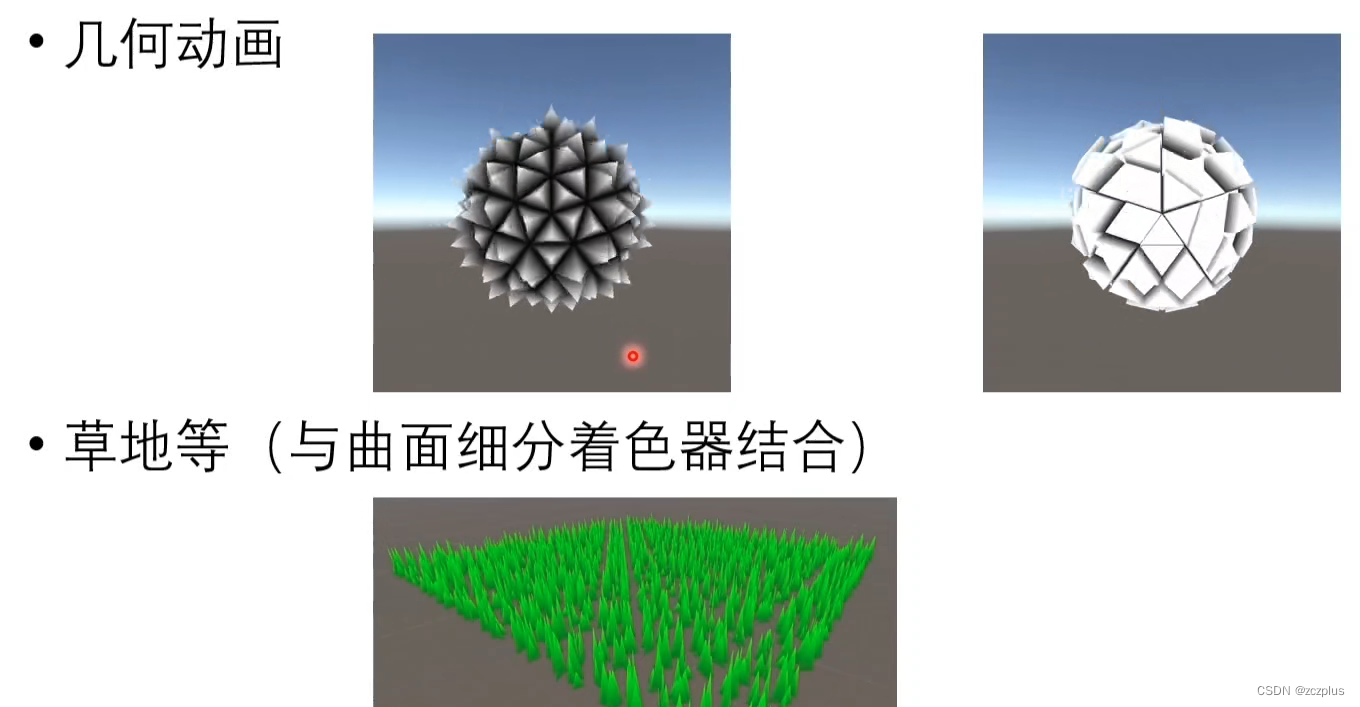

3.3.2 Application of geometric shaders

Shader execution order

3.3.3 TESS Input and output of

• Input
  Patch, It can be regarded as a collection of multiple vertices , Contains the attributes of each vertex , You can specify one Patch The number of vertices contained and their own attributes .
• function
  Subdivide the element （ It can be a triangle , Rectangle, etc ）
• Output
  Subdivided vertices

3.3.4 TESS technological process （Tessellation Shader ）

1. HULL Shader
   • Determine the number of segments （ Set up Tessellation factor as well as Inside Tessellation factor）
   • For the input Patch Change the parameters （ if necessary ）
2. Tessellation Primitive Generation
   Subdivide
3. Domain Shader
   Process the subdivided points , From center of gravity space to screen space

HULL Shader

• Tessellation Factor
  Used to decide how to divide an edge into several parts
  equal_Spacing
  fractional_even_spacing： The minimum value is 2
  fractional_odd_spacing： The minimum value is 1


  The last two parameters contain decimal parts , There are non equal length parts at both ends of the line , The function is to make the cut line segment smoother

• Inner Tessellation Factor
  Make a vertical line on the dividing point and generate an intersection , So as to get effective internal segmentation


3.3.5 GS Input and output

• Input ： For element （ triangle , rectangular , Line, etc ）
  Depending on the element ,shader A different number of vertices will appear in the
• The output is also an element , One or more , You need to build from the top , Order matters , At the same time, you need to define the maximum number of output vertices

Homework

Surface subdivision

Large area grass rendering

Generate grass according to the number of vertices , And you can change the orientation , length , Width , Color , And use the distorted texture to make the effect of wind .
Follow the link below , That's too much , All night , I almost understand the function of each piece of code . Add your own understanding of the code, and then record it later , It's convenient to find later .
Large area grass rendering tutorial （ The pure English course is super good , Maybe a ladder ？）

Tessellation Shader

Shader "Custom/100 learning/MyTessShader"
{

    Properties
    {

        _TessellationUniform ("Tessellation Uniform", Range(1, 64)) = 1
    }
    SubShader
    {

        Tags {

            "RenderType" = "Opaque"
        }

        Pass{

            LOD 200
            Name "FORWARD"
            Tags{

                "LightMode" = "ForwardBase"
            }

            CGPROGRAM

            //  Surface subdivision shaders contain  hull shader  and  domain shader
            //  Plus   Vertex shaders and fragment shaders
            #pragma hull hullShader
            #pragma domain domainShader
            #pragma vertex tessVert
            #pragma fragment frag

            #include "UnityCG.cginc"
            // Surface subdivision header file   Including some auxiliary functions
            #include "Tessellation.cginc"

            #pragma target 5.0

            sampler2D _MainTex;
            float4 _MainTex_ST;

            struct a2v{

                float4 vertex : POSITION;
                float3 normal : NORMAL;
                float4 tangent : TANGENT;
                float2 uv : TEXCOORD0;
            };

            struct v2f{

                float4 pos : SV_POSITION;
                float3 normal : NORMAL;
                float4 tangent : TANGENT;
                float2 uv : TEXCOORD0;
            };

            //  be applied to domain Function , Used to process coordinates
            v2f vert (a2v v){

                v2f o;

                o.pos = UnityObjectToClipPos(v.vertex);
                o.normal = v.normal;
                o.tangent = v.tangent;
                o.uv = v.uv;

                return o;
            }

            #ifdef UNITY_CAN_COMPILE_TESSELLATION
                struct tessVertex{

                    float4 vertex : INTERNALTESSPOS;
                    float3 normal : NORMAL;
                    float4 tangent : TANGENT;
                    float2 uv : TEXCOORD0;
                };

                //  Different elements , The structure will be different   be used for Hull Shader
                struct outputPatchConstant{

                    float edge[3] : SV_TESSFACTOR;
                    float inside : SV_INSIDETESSFACTOR;
                };

                //  Pass data from vertex shaders into surface subdivision shaders
                tessVertex tessVert(a2v v){

                    tessVertex o;
                    o.vertex = v.vertex;
                    o.normal = v.normal;
                    o.tangent = v.tangent;
                    o.uv = v.uv;

                    return o;
                }

                float _TessellationUniform;

                outputPatchConstant hsconst (InputPatch<tessVertex, 3> patch){

                    //  Define surface subdivision parameters
                    outputPatchConstant o;
                    o.edge[0] = _TessellationUniform;
                    o.edge[1] = _TessellationUniform;
                    o.edge[2] = _TessellationUniform;
                    o.inside = _TessellationUniform;

                    return o;
                }

                //  Determine the type of elements ：quad / triangle
                [UNITY_domain("tri")]
                //  Split edge The rules of ：equal_spacing, fractional_odd, fractional_even
                [UNITY_partitioning("fractional_odd")]
                //  Output triangle , For example, clockwise or counterclockwise   It is related to back culling
                [UNITY_outputtopology("triangle_cw")]
                //  One patch There are three points , But all three points share this function
                [UNITY_patchconstantfunc("hsconst")]
                //  Different elements correspond to different control points
                [UNITY_outputcontrolpoints(3)]

                //  Definition hullShader function
                tessVertex hullShader (InputPatch<tessVertex, 3> patch, uint id : SV_OUTPUTCONTROLPOINTID){

                    return patch[id];
                }

                //  Define the type of element ： And hull shader In the same way
                [UNITY_domain("tri")]

                // bary Represents the coefficient under the center of gravity coordinate , Return the point under the center of gravity coordinate
                v2f domainShader(outputPatchConstant tessFactors, const OutputPatch<tessVertex, 3> patch, float3 bary : SV_DOMAINLOCATION){

                    a2v v;
                    v.vertex = patch[0].vertex * bary.x + patch[1].vertex * bary.y + patch[2].vertex * bary.z;
                    v.tangent = patch[0].tangent * bary.x + patch[1].tangent * bary.y + patch[2].tangent * bary.z;
                    v.normal = patch[0].normal * bary.x + patch[1].normal * bary.y + patch[2].normal * bary.z;
                    v.uv = patch[0].uv * bary.x + patch[1].uv * bary.y + patch[2].uv * bary.z;

                    v2f o = vert (v);
                    return o;
                }
            #endif

            fixed4 frag(v2f i):SV_Target{

                return fixed4(1.0, 1.0, 1.0, 1.0);
            }

            ENDCG
        }
    }
    FallBack Off
}

The grass Shader

Shader "Custom/100 learning/MyGrassShader"
{

    Properties
    {

        [Header(Shading)]
        //  Color
        _TopColor("Top Color", Color) = (1,1,1,1)
		_BottomColor("Bottom Color", Color) = (1,1,1,1)
		_TranslucentGain("Translucent Gain", Range(0,1)) = 0.5
        //  The width and height of the grass   as well as   Corresponding random adjustment threshold
        _BladeWidth("Blade Width", Float) = 0.05
        _BladeWidthRandom("Blade Width Random", Float) = 0.02
        _BladeHeight("Blade Height", Float) = 0.5
        _BladeHeightRandom("Blade Height Random", Float) = 0.3
        //  Random tilt threshold
        _BendRotationRandom("Bend Rotation Random", Range(0, 1)) = 0.2
        // Tessellation Shader  relevant
        _TessellationUniform("Tessellation Uniform", Range(1, 64)) = 1
        //  Add wind blown twisted texture
        _WindDistortionMap("Wind Distortion Map", 2D) = "white" {
    }
        _WindFrequency("Wind Frequency", Vector) = (0.05, 0.05, 0, 0)
        //  Intensity of wind
        _WindStrength("Wind Strength", Float) = 1
    }

    // CGINCLUDE Generally written in the book SubShader Outside   Convenient for all  SubShader share
    CGINCLUDE
    #include "UnityCG.cginc"
    #include "Autolight.cginc"
    #include "Tessellation.cginc"
    //  The function of this reference is the same as that of the above Tessellation As like as two peas
    #include "Assets/100PersonPlan/Shader/CustomTessellation.cginc"

    float _BendRotationRandom;

    float _BladeHeight;
    float _BladeHeightRandom;
    float _BladeWidth;
    float _BladeWidthRandom;

    sampler2D _WindDistortionMap;
    float4 _WindDistortionMap_ST;

    float2 _WindFrequency;

    float _WindStrength;


    struct geometryOutput{

        float4 pos : SV_POSITION;
        #if UNITY_PASS_FORWARDBASE
        // float3 normal : NORMAL;
            float2 uv : TEXCOORD0;
        // // unityShadowCoord4 is defined as a float4 in UnityShadowLibrary.cginc
        // unityShadowCoord4 _ShadowCoord : TEXCOORD1;
        #endif
    };

    // https://forum.unity.com/threads/am-i-over-complicating-this-random-function.454887/#post-2949326
	// Returns a number in the 0...1 range.
    float rand(float3 co){

        return frac(sin(dot(co.xyz,float3(12.9898, 78.233, 53.539))) * 43758.5453);
    }

    // Construct a rotation matrix that rotates around the provided axis, sourced from:
	// https://gist.github.com/keijiro/ee439d5e7388f3aafc5296005c8c3f33
    float3x3 AngleAxis3x3(float angle, float3 axis){

        float c, s;
        // return sin and cos values of the given angle
        sincos(angle, s, c);
        float t = 1 - c;
        float x = axis.x;
        float y = axis.y;
        float z = axis.z;

        return float3x3(
            t * x * x + c, t * x * y - s * z, t * x * z + s * y,
			t * x * y + s * z, t * y * y + c, t * y * z - s * x,
			t * x * z - s * y, t * y * z + s * x, t * z * z + c
			);
    }

    //  Because in CustomTessellation.cginc Has been defined in  vertexInput vertexOutput  as well as  vert
    //  So the following three parts are omitted
    // struct vertexInput{

    // float4 vertex : POSITION;
    // float3 normal : NORMAL;
    // float4 tangent : TANGENT;
    // };

    // struct vertexOutput{

    // float4 vertex : SV_POSITION;
    // float3 normal : NORMAL;
    // float4 tangent : TANGENT;
    // };

    // // Modify the vertex shader
    // vertexOutput vert(vertexInput v){

    // vertexOutput o;
    // o.vertex = v.vertex;
    // o.normal = v.normal;
    // o.tangent = v.tangent;
    // return o;
    // }

    geometryOutput VertexOutput(float3 pos, float2 uv){

        geometryOutput o;
        o.pos = UnityObjectToClipPos(pos);
        o.uv = uv;
        return o;
    }

    //  The operation of transforming vertices   Transferred to geometry shader in , therefore UnityObjectToClipPos Written in geo shader in
    //  There are two parameters in the function declaration section   The first is input , Indicates receiving a triangle type , ( The interior contains three vertices )
    // The second parameter means to output a triangles, And make use of geometryOutput To carry the data
    [maxvertexcount(3)]
    void geo(triangle vertexOutput IN[3], inout TriangleStream<geometryOutput> triStream){

        geometryOutput o;

        float3 pos = IN[0].vertex;
        float3 vNormal = IN[0].normal;
        float4 vTangent = IN[0].tangent;
        float3 vBinormal = cross(vNormal, vTangent) * vTangent.w;

        // Used to convert between world space and tangent space
        float3x3 tangentToLocal = float3x3(
			vTangent.x, vBinormal.x, vNormal.x,
			vTangent.y, vBinormal.y, vNormal.y,
			vTangent.z, vBinormal.z, vNormal.z
			);

        //  Randomly generate the rotation angle according to the current position , And specify the rotation as  z  Axis （ In tangent space ）
        float3x3 facingRotationMatrix = AngleAxis3x3(rand(pos) * UNITY_TWO_PI, float3(0,0,1));
        float3x3 bendRotationMatrix = AngleAxis3x3(rand(pos.zzx) * _BendRotationRandom * UNITY_PI * 0.5, float3(-1,0,0));

        //  Use the position of the current point to sample the distorted texture , Instead of the texture coordinates of the given mesh , So as to achieve the effect of realistic wind
        float2 uv = pos.xz * _WindDistortionMap_ST.xy + _WindDistortionMap_ST.zw + _WindFrequency * _Time.y;
        //  Sample the distorted texture in combination with the strength of the wind   Texture sampling range from 0 - 1 Turn into  -1 - 1
        float2 windSample = (tex2Dlod(_WindDistortionMap, float4 (uv, 0, 0)).xy * 2 - 1)* _WindStrength;
        //  Generate the axis of rotation
        float3 wind = normalize(float3(windSample.x, windSample.y, 0));
        //  Generate rotation matrix
        float3x3 windRotation = AngleAxis3x3(UNITY_PI * windSample, wind);

        //  Using translation matrix and rotation matrix to generate transformation matrix
        float3x3 transformationMatrix = mul(mul(mul(tangentToLocal, windRotation), facingRotationMatrix), bendRotationMatrix);

        //  Use random numbers to generate the height and width of each piece of grass
        float height = (rand(pos.zyx) * 2 - 1) * _BladeHeightRandom + _BladeHeight;
        float width = (rand(pos.xzy) * 2 -1) * _BladeWidthRandom + _BladeWidth;

        //  The processing of transforming points from model space to world space is extracted to the outside and becomes function calls
        //  The application of tangent change matrix becomes the transformation from tangent space to world space
        triStream.Append(VertexOutput(pos + mul(transformationMatrix, float3(width, 0, 0)), float2(0, 0)));
        triStream.Append(VertexOutput(pos + mul(transformationMatrix, float3(-width, 0, 0)), float2(1, 0)));
        //  In tangent coordinates , The direction pointing upwards is z Axis , So here's 1 Should be given z
        triStream.Append(VertexOutput(pos + mul(transformationMatrix, float3(0, 0, height)), float2(0.5, 1)));

    }

    ENDCG

    SubShader{

        Cull Off

        Pass{

            Tags{

                "RenderType" = "Opaque"
                "lightMode" = "ForwardBase"
            }

            CGPROGRAM
            #pragma vertex vert
            #pragma hull hull
            #pragma domain domain
            #pragma geometry geo
            #pragma fragment frag
            #pragma target 4.6
            #pragma multi_compile_fwdbase

            #include "Lighting.cginc"

            float4 _TopColor;
            float4 _BottomColor;
            float _TranslucentGain;

            fixed4 frag(geometryOutput i, fixed facing : VFACE) : SV_Target{


                return lerp(_BottomColor, _TopColor, i.uv.y);
            }

            ENDCG
        }
    }
    FallBack Off
}

Add

After reading others' homework, I found that there are still many points that can be optimized , Then change ！
