Observation cloud product update｜DCA web terminal is online; new global viewer auto refresh configuration; new global blacklist function; new custom function menu, etc.

观测云更新

DCA Web 端上线

观测云新增 DataKit 的 Web 端管理工具 DCA ,Designed to facilitate management of installed and configured collectors,Supports checking the operation of the collector、Collector configuration management、Pipeline管理、Blacklist management and collector documentation help.

更多详情可参考文档【 DCA 】https://docs.guance.com/dca/

Optimized viewer search、快捷筛选、时间控件、显示列

Viewer search

• in the viewer search bar,新增「存在」、「不存在」筛选逻辑,Returns search results by judging whether the filter field exists;

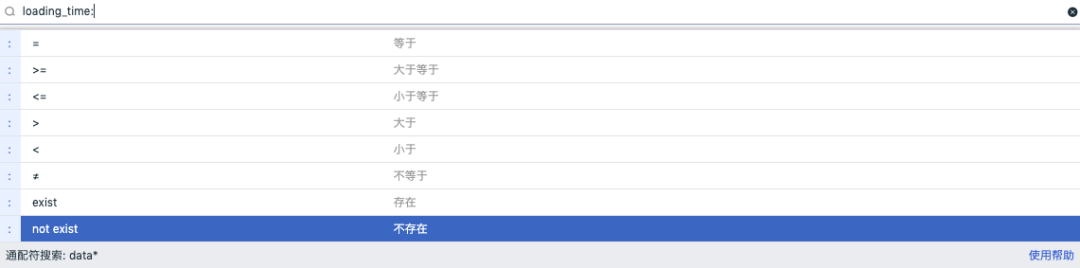

• in the viewer search bar,Added operations for numeric types,支持包括
  等于、大于等于、小于等于、大于、小于、不等于
   等运算符;

• Added field data type hints,Match pattern description

More details on viewer search can be found in the documentation【 Search for instructions 】https://docs.guance.com/getting-started/necessary-for-beginners/explorer-search/#search

快捷筛选

• Filter items in the shortcut,Added tag field search function,When the shortcut filter item exceeds 10 个标签字段,支持按照「字段名」或者「显示名」进行模糊搜索;

• Added in quick filter item「设置」按钮,支持添加 / Remove display columns;

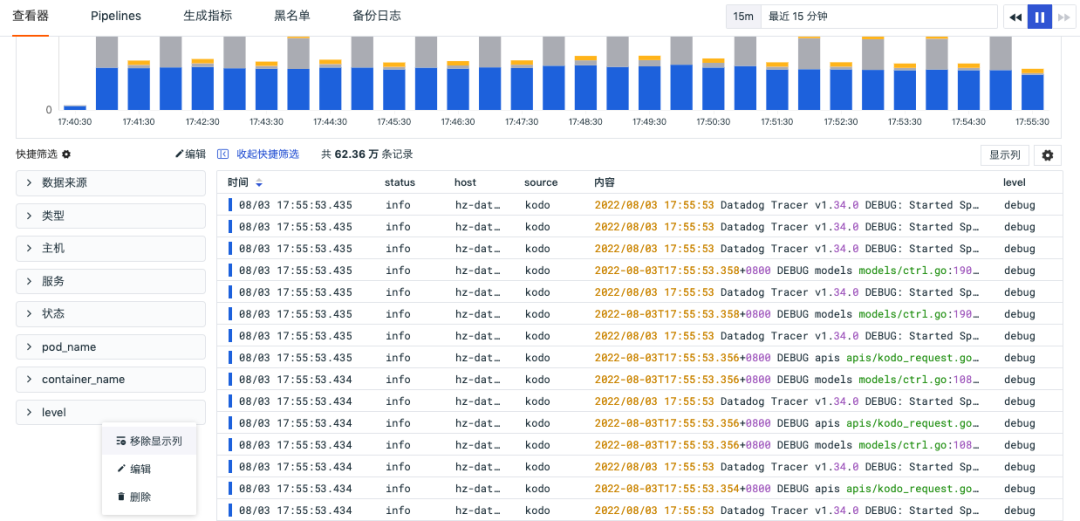

• Added in quick filter item「设置」按钮,Custom added personal-level filter item fields support edit display name and delete fields.

For more details on viewer shortcut filtering, please refer to the documentation【 Quick filter instructions 】https://docs.guance.com/getting-started/necessary-for-beginners/explorer-search/#quick-filter

时间控件

• Added interval display,Support clicking the display box of the time control to manually input the time range,包括「区间范围」、「时间戳范围」和「标准时间格式」;

• Added custom options to the drop-down list,Custom scope support
  时:分:秒
   的格式输入;

• Add recent 20 View the absolute time records of the history.

For more details on viewer time controls, please refer to the documentation【 Time control description 】https://docs.guance.com/getting-started/necessary-for-beginners/explorer-search/#time

显示列

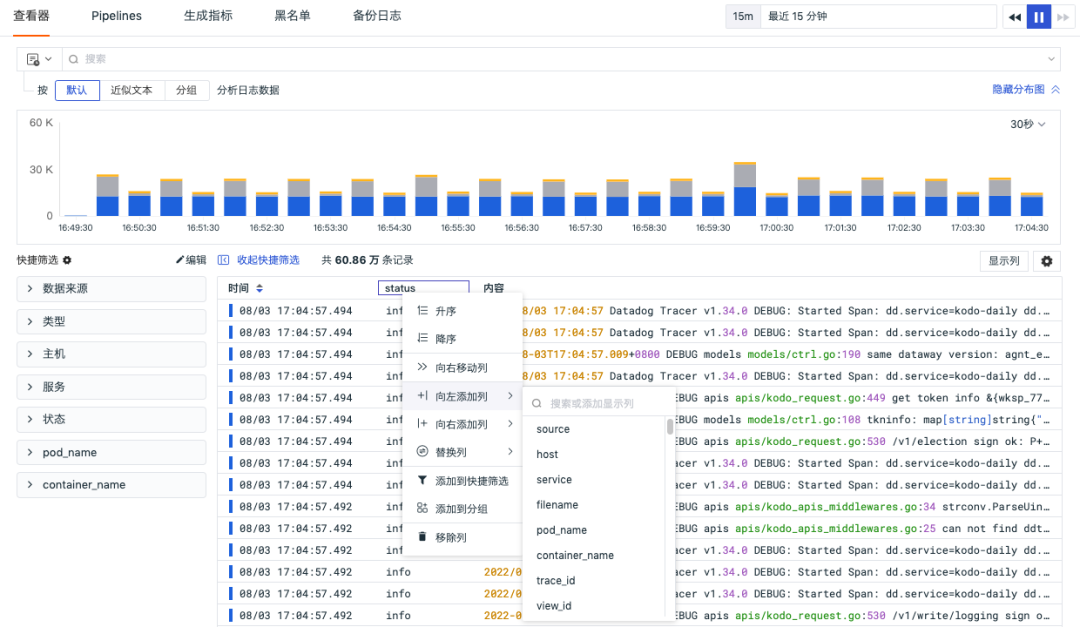

in the viewer list,When the mouse is placed on the display column,新增「设置」按钮,Ascending order of displayed columns is supported、降序、向左移动列、向右移动列、Add columns to the left、向右添加列、替换列、Added to quick filter、添加到分组、移除列等操作.

More viewer display columns can be found in the documentation【 Displays column descriptions 】https://docs.guance.com/getting-started/necessary-for-beginners/explorer-search/#columns

Optimize the viewer details page

• Remove the mask,Adjust the width ratio of the details page;

• Adjust the extended field quick filter“筛选字段值”、“Reverse filter field values”、“添加到显示列”和“复制”Waiting for the location of the operation;

• Support to switch keys up and down through the keyboard（↑ ↓ ）,Toggle to view the upper and lower log details;

• Support via keyboard ECS button to close the details page pop-up window directly.

• 新增“查看上下文”功能：When opening a new log viewer in the log details page viewing context,会以 “host”、“source”、“service”、“filename” 为筛选条件,Use the current log time as the start time、 当前日志时间 + 30Minutes as the end time are brought to the time control for contextual log filtering.

更多详情可参考文档【 查看上下文 】https://docs.guance.com/logs/explorer/#up-down

Added global viewer auto refresh configuration

在观测云工作空间,点击「账号」,可开启 / 关闭 「The viewer refreshes automatically」.

• 开启：The viewer's data is refreshed according to the default data refresh time of the time control 30 automatic refresh in seconds,For example, select Recent 15 分钟,按照 30 Refresh every second to show the most recent 15 分钟的数据

• 关闭：Closes when the viewer's time control enters 30 秒自动刷新,For example, select Recent 15 分钟,This is displayed15The content data of the absolute time in minutes is no longer automatically refreshed,可点击「播放」Button refresh to view recent 15 分钟的数据.

注意：Viewer auto-refresh only works for local browsers.

For more details on viewer time controls, please refer to the documentation【 Time control description 】https://docs.guance.com/getting-started/necessary-for-beginners/explorer-search/#time

Added global blacklist function

Observation Cloud supports filtering out different types of data that meet the conditions by setting a blacklist,That is, after configuring the blacklist,Eligible data is no longer reported to the observation cloud workspace,Helps you save on data storage costs.The global blacklist function currently supports filtering of data types including logs、基础对象、自定义对象、网络、应用性能监测、用户访问监测、安全巡检、事件、指标、Profile.

更多详情可参考文档【 黑名单 】https://docs.guance.com/management/overall-blacklist/

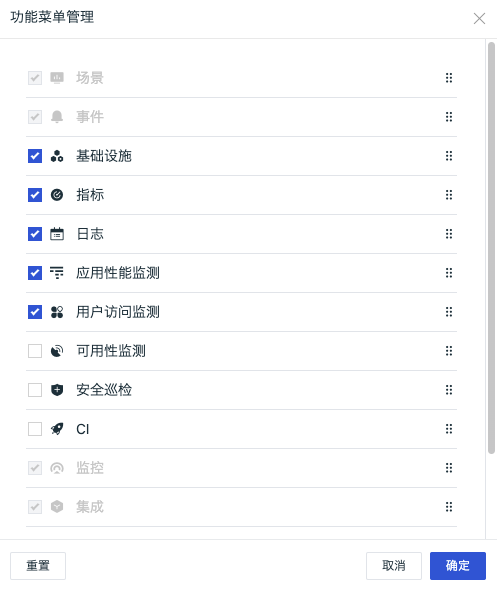

Added custom function menu

Observation cloud supports manual setting function menu,包括隐藏/Display and adjust the menu order,Helps you customize the menu display for the current workspace.在观测云工作空间,Click on your account in the lower left corner,选择「Function menu management」,The menu can be adjusted.

更多详情可参考文档【 Function menu management 】https://docs.guance.com/management/customized-menu/

Added chart query alias

Visualize charts in the scene,Added icon query alias,There can only be one alias per query,after adding the alias,The legend's name also changes accordingly,It is convenient to distinguish related indicators more intuitively.Currently supported diagrams include timing diagrams、饼图、柱状图、散点图、气泡图、漏斗图.

Added timing diagram、Pie chart legend style

Visualize charts in the scene,Added support for pie charts including bottoms、右侧、环绕、Hidden legend style,Timing diagram support includes bottom、Right and hidden legend styles,Hide legend styles by default.

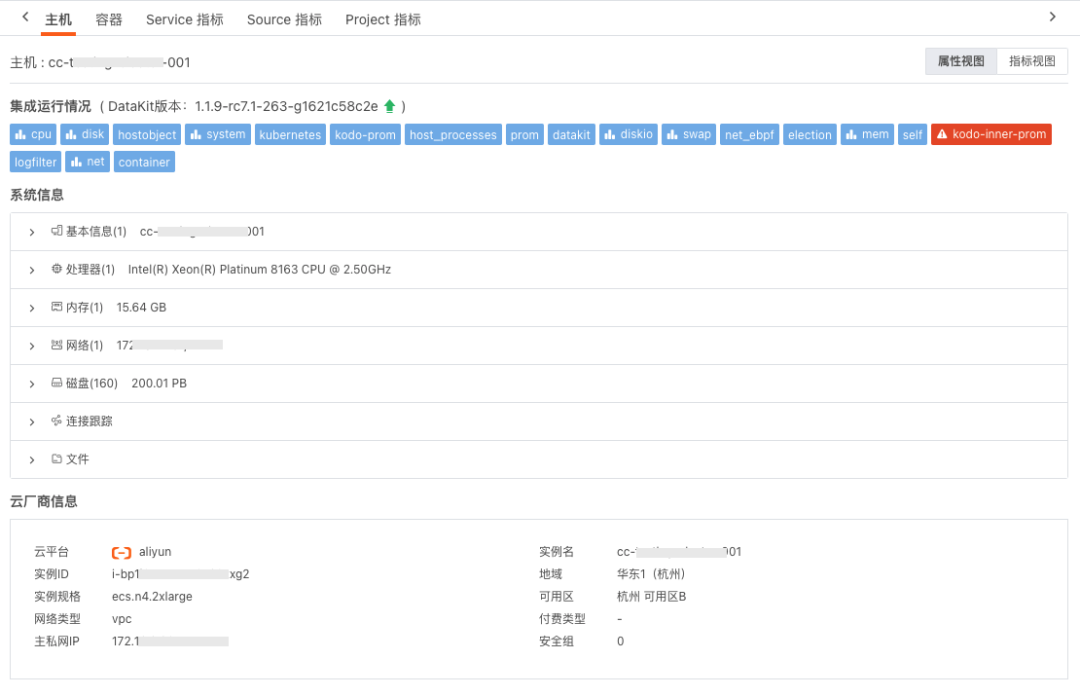

Optimize the object historical data saving strategy

Observation clouds are all objects reported to the workspace（主机、容器、pod）存储 48 Hourly historical data,It is convenient for users to look back on the data performance of the object at a certain moment in the past two days.By observing clouds「日志」、「链路」、「安全巡检」查看器,You can connect to the host、容器、Pod「属性视图」in the traceback log、链路、Before the inspection data is generated 10 host within minutes / 容器 / pod The actual situation of the latest piece of data of the object.

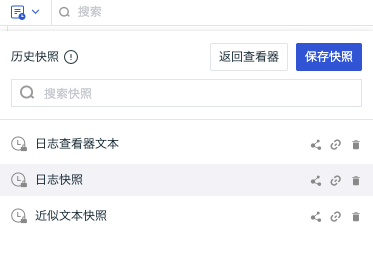

Adjust where snapshots are saved

The navigation bar at the top of the viewer is removed「保存快照」按钮,Unified migration to「历史快照」中,Scene Dashboards and Notes with shortcuts to create snapshots.

更多详情可参考文档【 快照 】https://docs.guance.com/management/snapshot/

其他功能优化

• The time interval of the sequence diagram has been added to the millisecond level

• A new workspace-level index configuration adjustment entry has been added to the management background

• Added support for custom selection time interval in log viewer distribution graph

• RUMThe Viewer page adds the current data extension field page display
