Preface

At the end of game development , Most games will be connected to the novice guide function , Enhance the player's game experience , Not to let the player into the game, there is a sense of cold or at a loss . It is estimated that there are 100 ways for a hundred people to guide them , Next, I'm going to share how I use it , And with the discussion of some problems .

Teaching guidance

1. Focus with a simple mask .

This way can distract the player's attention , After all, there is a lot of content when you enter the game , But people's ability to accept is limited . You can decide whether there is a mask based on the configuration table settings

2. Put guidance at the top , Screen touch events

This way is easier , It also avoids the guide error caused by the player's random point . But we can use the configuration table , Decide if this step is mandatory guidance , If not, you can not block the event .

3. How to get the finger position

Through the configured interface node name , The control name gets the node directly . Here we use the form of array to configure , It's reserved for drag and drop teaching . Let your fingers slide from one position to another .

    setWidget() {
        if (this.widget) {
            return;
        }
        let parent = EngineHelper.findChild(this.className, UIManager.instance().getRoot())
        if (parent) {
            if (this.widgetName) {
                if (this.widgetName == 'this') {
                    this.widget = parent;
                } else {
                    this.widget = EngineHelper.findChild(this.widgetName, parent)
                }
                if (this.index >= 0) {
                    this.widget = this.widget.children[this.index]
                    if (this.index2 >= 0) {
                        this.widget = this.widget.children[this.index2]
                    }
                }

            } else {
                this.widget = parent;
            }
        }
    }

Then, the coordinates of the nodes are assigned to the fingers through transformation

3. How to trigger a function .

Configure the nodes in the data table , Components , And function name When the user clicks his finger , Call... Directly through code

    trigger() {
        if (this.widget) {
            let comp = this.widget.getComponent(this.compName)
            if (comp) {
                comp[this.funcName]();
            }else{
                cc.warn(' comp is null ',this.compName)
            }
        }
    }

Complete teaching data sheet

Event manager

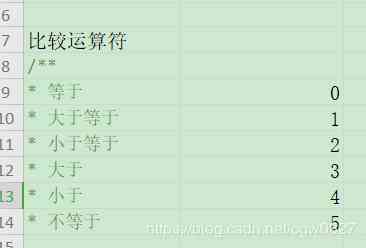

Various events may be triggered in the game , Teaching is just one of them , It's also possible to prompt , Set the node to hide , Assign a character to a point , wait . The event manager decides whether to turn on or not according to the specific conditions and judgment conditions . The possible types are Contrast type ： Compare the value passed in at trigger time with the demand value in the data sheet , Judge whether the first stage is tenable . If it is true to judge whether the additional conditions are true , If set up , So the event starts . Perform each step in the event table . The reason why two judgments are added here is for the sake of efficiency , When a type of event is triggered, only the event corresponding to that type is checked .

4. Event handling

In the data table to configure each step to do things and parameters The first column is the event execution sequence number , Unique identification . The second column is events ID, It's an index column , If you pass in 1 You're going to get directly a containing [1,2,3] Array of The third column is the setting of whether to archive or not , That is, where to archive , If it's online games , Which step tells the server that the event ends . The fourth column It's the type of operation , Organize all the functions through code . So , Teaching is just a small part of the event management system .

    update() {
        let item = this.event.getItemModel()
        // cc.log('update ================= step ', this.step, ' this.eventID ', this.eventID)
        switch (item.getOperateType()) {
            case OperateType.OPEN_DIALOG:
                break;
            case OperateType.OPEN_GUIDE:
                GuideManager.instance().start(item.getParam())
                break;
            case OperateType.OPEN_TIP:
                TipController.instance().showTip(item.getParam(), () => {
                    this.event.next()
                })
                break;
            case OperateType.IN_VISIBLE:
                let list = item.getParam().split(':')
                let parent = UIManager.instance().getRoot()
                while (list.length > 0) {
                    let name = list.shift();
                    let node = EngineHelper.findChild(name, parent)
                    if (node) {
                        parent = node;
                    } else {
                        break;
                    }
                }
                cc.log(' list.length  ===========   ', list.length)
                if (parent && list.length == 0) {
                    parent.active = false;
                    this.event.next()
                }
                break;
            default:
                this.emit(GameEventName.EVENT_UPDATE, item)
                break;
        }
    }

According to your own defined processing type , Configure different parameters in the data table , Do different things in the code . It has been defualt Because some operations are not accessible to the manager . For example, the operation of the characters in the game , It should be about the emulator , So the emulator listens for events , And then according to the different Call different functions , Implement different logic .

5. When to check Events

The timing of event checking depends on the defined trigger type , When your conditions hold , Need to actively call the event manager checkEvent function , Input the corresponding trigger condition type , And a specific value . Here are a few examples .

1. After entering the interface, enter the start Active check in function

2. When the interface has been opened, receive the notification triggered by the event manager through the event .

3. When UI closed . For example, offline rewards may pop up when you first enter the hall , Check in, etc , Trigger when these interfaces are closed .

summary

The above is the event management system I use in game development , In theory, you can do whatever you want . The code has been submitted to the framework project . If you are interested, you can do your own research .​
