Security policy and NAT (easy IP) of firewall Foundation
2022-06-22 20:16:00 【51CTO】
Firewall deployment security policy and NAT
Principle overview ：
Easy IP It is a kind of public network using outgoing interface IP Address as NAT Post transfer address , Address conversion method for converting addresses and ports at the same time , For interfaces IP Is a dynamically acquired scene ,Easy IP Also support
When the public network interface of Huawei firewall dynamically obtains the public network address through dialing , If you only want to use this public network IP Address to address translation , Not at this time NAT Configure fixed addresses in the address pool , Because the public network IP The address changes dynamically , here , have access to Easy IP The way , Even if the public network obtained on the outgoing interface IP The address has changed , Huawei firewall will also follow the new public network IP Address to address translation
When the host passes through Easy IP visit Web Server when , The process of Huawei firewall is as follows
After Huawei firewall receives the message sent by the host , According to the purpose IP The address determination message needs to be in Trust Areas and Untrust Flow between regions , Find through security policy check follow-up NAT Strategy , It is found that address translation is required for the message
Huawei firewall usage and Internet The public network of the connected interface IP The source of the address replacement message IP Address , At the same time, replace the source port number of the message with the new port number , And create a conversation table , Then send the message to Internet
Huawei firewall received Web Server After responding to the message from the host , Match to step... By looking up the session table 2 Table entries created in , Replace the destination address of the message with that of the host IP Address , Replace the destination port number of the message with the original port number , Then send the message to Intranet
In this way , Because the address conversion is also carried out at the same time as the port conversion , Multiple private network users can use a public network IP Address online , Huawei firewall distinguishes different users according to ports , Therefore, the number of users who can access the Internet at the same time is more
A firewall （ English ：Firewall） Technology is through the organic combination of all kinds of software and hardware equipment for safety management and screening , Help the computer network in it 、 Build a relatively isolated protective barrier between the external networks , A technology to protect user data and information security .
The function of firewall technology is to discover and deal with the possible security risks when the computer network is running 、 Data transmission and so on , The treatment measures include isolation and protection , At the same time, it can record and test all operations in computer network security , To ensure the security of computer network operation , Guarantee the integrity of user data and information , Better for users 、 More secure computer network experience .
So-called “ A firewall ” It refers to an intranet and public access network （ Such as Internet） The way of separation , It is actually an applied security technology based on modern communication network technology and information security technology , Isolation technology . It is more and more used in the interconnection environment of private network and public network , Especially with access Internet The Internet is the most important .
Firewall is a protective barrier between the internal and external network environment with the help of hardware and software , So as to block the unsafe network factors of the computer . Only with the consent of the firewall , Users can enter the computer , If you don't agree, you'll be blocked out , The alarm function of firewall technology is very powerful , When an external user wants to enter the computer , The firewall will quickly send out the corresponding alarm , And remind users of their behavior , And make self judgment to decide whether to allow external users to enter the interior , As long as the user is in the network environment , This kind of firewall can carry out effective query , At the same time, the information found will be displayed to the user , Then users need to implement corresponding settings for the firewall according to their own needs , Block the disallowed user behavior . Through the firewall, you can also effectively view the traffic of information data , And it can also master the speed of uploading and downloading data information , It is convenient for users to have good control judgment on the use of computers , The internal situation of the computer can also be viewed through this firewall , It also has the function of starting and closing the program , And the internal log function of the computer system , In fact, it is also a summary of the real-time situation of the firewall and the internal security of the computer system .
Firewall is a kind of access control scale which is executed when two networks communicate , It can prevent hackers from accessing your network to the maximum extent . It's set up on different networks （ Such as trusted intranet and untrusted public network ） Or a combination of components between network security domains . It is the only access to information between different networks or network security domains , Be able to control according to the safety policy of the enterprise （ allow 、 Refuse 、 monitoring ） Information flow in and out of the network , And it has strong anti attack ability . It's about providing information security services , Infrastructure for network and information security . Logically , The firewall is a separator , A limiter , It's also an analyzer , Effectively monitored the intranet and Internet Any activity between , Ensure the security of the internal network .
The firewall scans its network traffic , This will filter out some attacks , In case it is executed on the target computer . Firewalls can also shut down unused ports . And it can also disable outgoing traffic on specific ports , Block the Trojan horse . Last , It can disable access from special sites , To prevent all communications from unknown intruders .
The barrier of network security
A firewall （ As a blocking point 、 The control points ） It can greatly improve the security of an internal network , And reduce risk by filtering unsafe Services . Because only carefully selected application protocols can pass through the firewall , So the network environment becomes more secure . For example, firewalls can prohibit such as well-known unsafe NFS Protocol access to protected network , In this way, it is impossible for external attackers to use these fragile protocols to attack the internal network . Firewalls can also protect the network from routing based attacks , Such as IP Source routing attacks and ICMP Redirection path in redirection . The firewall should be able to reject all messages of the above types of attacks and notify the firewall administrator .
Strengthen network security strategy
Configure through a firewall centric security scheme , All security software （ Like a password 、 encryption 、 Identity Authentication 、 Audit, etc ） Configure on the firewall . Compared with dispersing network security issues to various hosts , Centralized security management of firewall is more economical . For example, during network access , The one-time password system and other identity authentication systems do not have to be scattered on each host , And focus on the firewall .
Monitoring audit
If all access passes through the firewall , that , The firewall can record these accesses and log them , At the same time, it can also provide statistical data of network usage . When something suspicious happens , The firewall can give appropriate alarm , And provide detailed information on whether the network is monitored and attacked . in addition , It is also very important to collect the usage and misuse of a network . The first reason is to know whether the firewall can resist the detection and attack of attackers , And know whether the control of firewall is sufficient . Network usage statistics are also very important for network demand analysis and threat analysis .
Prevent the leakage of internal information
By using firewall to divide the internal network , It can realize the isolation of key network segments of intranet , Thus, the impact of local key or sensitive network security issues on the global network is limited . also , Privacy is an issue of great concern to the intranet , An unnoticed detail in an internal network may contain clues about security and attract the interest of external attackers , Some security vulnerabilities of the internal network have even been exposed . Using a firewall, you can hide those internal details, such as Finger,DNS Etc .Finger Displays the registered names of all users of the host 、 real name , Last login time and use shell Type, etc . however Finger The information displayed is very easy for attackers to learn . An attacker can know how often a system is used , Whether there are users connecting to the Internet in this system , Whether the system is noticed when being attacked, etc . Firewalls can also block information about internal networks DNS Information , The domain name of such a host and IP The address will not be known to the outside world . In addition to safety , The firewall also supports Internet Service enterprise internal network technology system VPN（ Virtual private network ）.
Logging and event notification
All data entering and leaving the network must pass through the firewall , The firewall records it through logs , It can provide detailed statistical information of network use . When a suspicious event occurs , The firewall can alarm and notify according to the mechanism , Provide information on whether the network is threatened .
The experiment purpose ：
Realize mutual visits between branches and use the public network IP
The topology ：
Basic configuration ：
FW1：
#
interface GigabitEthernet1/0/0
undo shutdown
ip address 192.168.2.20 255.255.255.0
service-manage http permit
service-manage https permit
service-manage ping permit
service-manage ssh permit
service-manage snmp permit
service-manage telnet permit
#
interface GigabitEthernet1/0/1
undo shutdown
ip address 20.0.0.10 255.255.255.0
service-manage http permit
service-manage https permit
service-manage ping permit
service-manage ssh permit
service-manage snmp permit
service-manage telnet permit
- 1.
- 2.
- 3.
- 4.
- 5.
- 6.
- 7.
- 8.
- 9.
- 10.
- 11.
- 12.
- 13.
- 14.
- 15.
- 16.
- 17.
- 18.
- 19.
- 20.
FW2:
#
interface GigabitEthernet1/0/0
undo shutdown
ip address 192.168.3.10 255.255.255.0
service-manage http permit
service-manage https permit
service-manage ping permit
service-manage ssh permit
service-manage snmp permit
service-manage telnet permit
#
interface GigabitEthernet1/0/2
undo shutdown
ip address 30.0.0.20 255.255.255.0
service-manage http permit
service-manage https permit
service-manage ping permit
service-manage ssh permit
service-manage snmp permit
service-manage telnet permit
- 1.
- 2.
- 3.
- 4.
- 5.
- 6.
- 7.
- 8.
- 9.
- 10.
- 11.
- 12.
- 13.
- 14.
- 15.
- 16.
- 17.
- 18.
- 19.
- 20.
The security policy ：
FW1:
#
firewall zone trust
set priority 85
add interface GigabitEthernet0/0/0
add interface GigabitEthernet1/0/0
#
firewall zone untrust
set priority 5
add interface GigabitEthernet1/0/1
#
security-policy
rule name acl1
source-zone trust
destination-zone untrust
source-address 192.168.1.0 mask 255.255.255.0
action permit
rule name acl2
source-zone untrust
destination-zone trust
destination-address 192.168.1.0 mask 255.255.255.0
service ftp
action permit
- 1.
- 2.
- 3.
- 4.
- 5.
- 6.
- 7.
- 8.
- 9.
- 10.
- 11.
- 12.
- 13.
- 14.
- 15.
- 16.
- 17.
- 18.
- 19.
- 20.
- 21.
- 22.
FW2:
#
firewall zone trust
set priority 85
add interface GigabitEthernet0/0/0
add interface GigabitEthernet1/0/0
#
firewall zone untrust
set priority 5
add interface GigabitEthernet1/0/2
#
security-policy
rule name acl1
source-zone trust
destination-zone untrust
source-address 192.168.4.0 mask 255.255.255.0
action permit
rule name acl2
source-zone untrust
destination-zone trust
destination-address 192.168.4.0 mask 255.255.255.0
service ftp
action permit
- 1.
- 2.
- 3.
- 4.
- 5.
- 6.
- 7.
- 8.
- 9.
- 10.
- 11.
- 12.
- 13.
- 14.
- 15.
- 16.
- 17.
- 18.
- 19.
- 20.
- 21.
- 22.
NAT Deploy ：
FW1:
FW2:
Configure the default route ：
FW1：
FW2：
Configure router ：
R1：

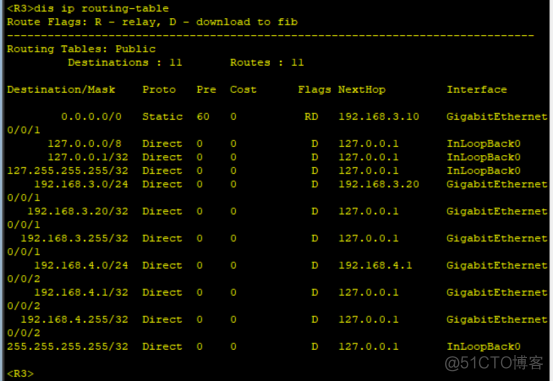

R2：
R3：
When the configuration is complete , Validation experiment
FW1：
FW2：
End of experiment ;
remarks ： If there is a mistake , Please understand ！
This article is my study notes , For reference only ！ If there is a repetition ！！！ Please contact me
