Memory partition model

Memory partition model

• Code section ： Store the binary code of the function body , Managed by the operating system
• Global area ： Store global and static variables and constants
• The stack area ： Automatically assigned by the compiler , Stores the parameter values of the function , Local variables, etc
• Heap area ： Assigned and released by the programmer , If programmers don't release , Recycle by the operating system at the end of the program

Before the code runs

Code section

1. Deposit CPU Machine instructions executed
2. The code area is shared , The purpose of sharing is for programs that are frequently executed , You only need a bit of code in memory
3. The code area is read-only , The purpose is to prevent the program from accidentally modifying instructions

Global area

1. Global variables and static variables are stored here
2. The global area also contains constants 、 String constants and other constants are also stored here
3. The data in this area is released by the operating system at the end of the program

#include <iostream>
using namespace std;

int global_a=10; //  Global variables
const int const_global_a=10;  // const Modified global constant

int main(void)
{

    int a=10;  //  local variable
    const int const_a=10;  // const Modified local constants
    static int b=10; //  Static variables
    cout << "Hello" << endl; // "Hello"  String constant
    return 0;
}

summary

• C++ Before the program runs, it is divided into global area and code area
• Code areas are characterized by shared and read-only
• Global variables are stored in the global area 、 Static variables 、 Constant
• In the constant area const Modified global variables and string constants

After the code runs

The stack area

1. Release is automatically allocated by the compiler , Stores the parameter values of the function 、 Local variables, etc

Do not try to return the address of a local variable , The space opened up by the stack area will be automatically released by the compiler

#include <iostream>
using namespace std;

int* f()
{

    int a=10;
    return &a;
}

int main(void)
{

    int*p=f(); // Try to accept a local variable of a function

    cout << *p << endl;
    cout << *p << endl;
    cout << *p << endl;
    return 0;
}

Heap area

new Allocate space

int * arr=new int[10];  //  establish 10 An array of shaped data
delete[] arr;  //  Free heap array

int * a=new int(10); //  Create value for 10 The shaping variable of
delete(a);

1. Release is assigned by the programmer , If programmers don't release , Recycle by the operating system at the end of the program
2. adopt new Open up space in the stack area （ amount to C Medium malloc）

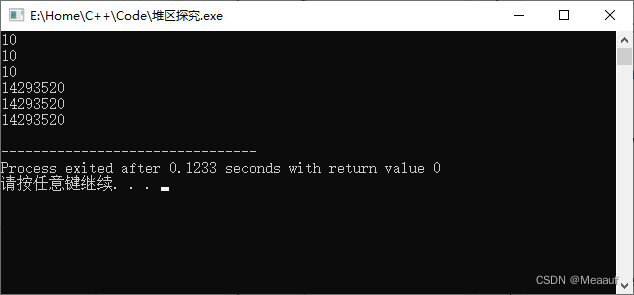

#include <iostream>
using namespace std;

int* f(int n)
{

	return new int(n);  //  Allocate space  n: Generated int Initial value
}

int main(void)
{

	int * p=f(10);
	cout << *p << endl;
	cout << *p << endl;
	cout << *p << endl;   //  If you don't release it manually , The value will always exist
    delete(p);  //  Free up space created by heap area
	cout << *p << endl;
	cout << *p << endl;
	cout << *p << endl;
	return 0;
}
