Single or multiple human posture estimation using openpose

In computer vision , Human posture estimation （ Key point detection ） It's a very common problem , In physical fitness 、 Action acquisition 、3D Fitting 、 Public opinion monitoring and other fields have broad application prospects , The detection method to be used in this paper is based on OpenPose Human posture estimation method based on .

One 、OpenPose brief introduction

OpenPose The human posture recognition project is Carnegie Mellon University （CMU） Based on Convolutional Neural Networks （CNN） And supervised learning （SL） And Caffe Open source library developed for the framework . It can realize human movement 、 Facial expressions 、 Finger movements, etc . Suitable for single or multiple people , It has very good robustness , It is the first real-time multi person two-dimensional attitude estimation application based on deep learning in the world .

Two 、 Realization principle

OpenPose The Internet VGGNet Before 10 Layer is used to create feature mapping for the input image , Then these features are input into two parallel branches of the convolution layer . The first branch predicts a set of confidence graphs （18 individual ）, Each confidence graph represents a specific part of the human posture skeleton graph , The second branch predicts another set Part Affinity Field (PAF,38 individual ）,PAF Indicates the degree of association between components . The picture below shows OpenPose Network model architecture diagram and flow chart of detection example image .

3、 ... and 、OpenPose Implementation code

import cv2
import time
import numpy as np
from random import randint

image1 = cv2.imread("znl112.jpg")# Add... According to your own path
protoFile = "pose_deploy_linevec.prototxt"
weightsFile = "pose_iter_440000.caffemodel"
nPoints = 18
# COCO Output Format
keypointsMapping = ['Nose', 'Neck', 'R-Sho', 'R-Elb', 'R-Wr', 'L-Sho', 'L-Elb', 'L-Wr', 'R-Hip',
                    'R-Knee', 'R-Ank', 'L-Hip', 'L-Knee', 'L-Ank', 'R-Eye', 'L-Eye', 'R-Ear', 'L-Ear']
POSE_PAIRS = [[1,2],[1,5],[2,3],[3,4],[5,6],[6,7],
              [1,8],[8,9],[9,10],[1,11],[11,12],[12,13],
              [1,0],[0,14],[14,16],[0,15],[15,17],[2,17],[5,16]]
# index of pafs correspoding to the POSE_PAIRS
# e.g for POSE_PAIR(1,2), the PAFs are located at indices (31,32) of output, Similarly, (1,5) -> (39,40) and so on.
mapIdx = [[31,32], [39,40], [33,34], [35,36], [41,42], [43,44],
          [19,20], [21,22], [23,24], [25,26], [27,28], [29,30],
          [47,48], [49,50], [53,54], [51,52], [55,56], [37,38], [45,46]]
colors = [[0,100,255], [0,100,255], [0,255,255], [0,100,255], [0,255,255], [0,100,255],
         [0,255,0], [255,200,100], [255,0,255], [0,255,0], [255,200,100], [255,0,255],
         [0,0,255], [255,0,0], [200,200,0], [255,0,0], [200,200,0], [0,0,0]]

def getKeypoints(probMap, threshold=0.1):
    mapSmooth = cv2.GaussianBlur(probMap,(3,3),0,0)
    mapMask = np.uint8(mapSmooth>threshold)
    keypoints = []
    #find the blobs
    _, contours, _ = cv2.findContours(mapMask, cv2.RETR_TREE, cv2.CHAIN_APPROX_SIMPLE)
    #for each blob find the maxima
    for cnt in contours:
        blobMask = np.zeros(mapMask.shape)
        blobMask = cv2.fillConvexPoly(blobMask, cnt, 1)
        maskedProbMap = mapSmooth * blobMask
        _, maxVal, _, maxLoc = cv2.minMaxLoc(maskedProbMap)
        keypoints.append(maxLoc + (probMap[maxLoc[1], maxLoc[0]],))
    return keypoints
# Find valid connections between the different joints of a all persons present
def getValidPairs(output):
    valid_pairs = []
    invalid_pairs = []
    n_interp_samples = 10
    paf_score_th = 0.1
    conf_th = 0.7
    # loop for every POSE_PAIR
    for k in range(len(mapIdx)):
        # A->B constitute a limb
        pafA = output[0, mapIdx[k][0], :, :]
        pafB = output[0, mapIdx[k][1], :, :]
        pafA = cv2.resize(pafA,(frameWidth, frameHeight))
        pafB = cv2.resize(pafB,(frameWidth, frameHeight))
        # Find the keypoints for the first and second limb
        candA = detected_keypoints[POSE_PAIRS[k][0]]
        candB = detected_keypoints[POSE_PAIRS[k][1]]
        nA = len(candA)
        nB = len(candB)
        # If keypoints for the joint-pair is detected
        # check every joint in candA with every joint in candB
        # Calculate the distance vector between the two joints
        # Find the PAF values at a set of interpolated points between the joints
        # Use the above formula to compute a score to mark the connection valid
        if(nA != 0 and nB != 0):
            valid_pair = np.zeros((0,3))
            for i in range(nA):
                max_j=-1
                maxScore = -1
                found = 0
                for j in range(nB):
                    # Find d_ij
                    d_ij = np.subtract(candB[j][:2], candA[i][:2])
                    norm = np.linalg.norm(d_ij)
                    if norm:
                        d_ij = d_ij / norm
                    else:
                        continue
                    # Find p(u)
                    interp_coord = list(zip(np.linspace(candA[i][0], candB[j][0], num=n_interp_samples),
                                            np.linspace(candA[i][1], candB[j][1], num=n_interp_samples)))
                    # Find L(p(u))
                    paf_interp = []
                    for k in range(len(interp_coord)):
                        paf_interp.append([pafA[int(round(interp_coord[k][1])), int(round(interp_coord[k][0]))],
                                           pafB[int(round(interp_coord[k][1])), int(round(interp_coord[k][0]))] ])
                    # Find E
                    paf_scores = np.dot(paf_interp, d_ij)
                    avg_paf_score = sum(paf_scores)/len(paf_scores)
                    # Check if the connection is valid
                    # If the fraction of interpolated vectors aligned with PAF is higher then threshold -> Valid Pair
                    if(len(np.where(paf_scores>paf_score_th)[0])/n_interp_samples)>conf_th:
                        if avg_paf_score > maxScore:
                            max_j = j
                            maxScore = avg_paf_score
                            found = 1
                # Append the connection to the list
                if found:
                    valid_pair = np.append(valid_pair, [[candA[i][3], candB[max_j][3], maxScore]], axis=0)
            # Append the detected connections to the global list
            valid_pairs.append(valid_pair)
        else: # If no keypoints are detected
            #print("No Connection : k = {}".format(k))
            invalid_pairs.append(k)
            valid_pairs.append([])
    return valid_pairs, invalid_pairs
# This function creates a list of keypoints belonging to each person
# For each detected valid pair, it assigns the joint(s) to a person
def getPersonwiseKeypoints(valid_pairs, invalid_pairs):
    # the last number in each row is the overall score
    personwiseKeypoints = -1 * np.ones((0, 19))
    for k in range(len(mapIdx)):
        if k not in invalid_pairs:
            partAs = valid_pairs[k][:,0]
            partBs = valid_pairs[k][:,1]
            indexA, indexB = np.array(POSE_PAIRS[k])
            for i in range(len(valid_pairs[k])):
                found = 0
                person_idx = -1
                for j in range(len(personwiseKeypoints)):
                    if personwiseKeypoints[j][indexA] == partAs[i]:
                        person_idx = j
                        found = 1
                        break
                if found:
                    personwiseKeypoints[person_idx][indexB] = partBs[i]
                    personwiseKeypoints[person_idx][-1] += keypoints_list[partBs[i].astype(int),2]+valid_pairs[k][i][2]
                # if find no partA in the subset, create a new subset
                elif not found and k < 17:
                    row = -1 * np.ones(19)
                    row[indexA] = partAs[i]
                    row[indexB] = partBs[i]
                    # add the keypoint_scores for the two keypoints and the paf_score
                    row[-1] = sum(keypoints_list[valid_pairs[k][i,:2].astype(int),2])+valid_pairs[k][i][2]
                    personwiseKeypoints = np.vstack([personwiseKeypoints,row])
    return personwiseKeypoints
frameWidth = image1.shape[1]
frameHeight = image1.shape[0]
t = time.time()
net = cv2.dnn.readNetFromCaffe(protoFile, weightsFile)
# Fix the input Height and get the width according to the Aspect Ratio
inHeight = 368
inWidth = int((inHeight/frameHeight)*frameWidth)
inpBlob = cv2.dnn.blobFromImage(image1,1.0/255,(inWidth,inHeight),(0,0,0),swapRB=False,crop=False)
net.setInput(inpBlob)
output = net.forward()
print("Time Taken in forward pass = {}".format(time.time() - t))
detected_keypoints = []
keypoints_list = np.zeros((0,3))
keypoint_id = 0
threshold = 0.1
for part in range(nPoints):
    probMap = output[0,part,:,:]
    probMap = cv2.resize(probMap, (image1.shape[1], image1.shape[0]))
    keypoints = getKeypoints(probMap, threshold)
    #print("Keypoints - {} : {}".format(keypointsMapping[part], keypoints))
    if keypointsMapping[part]=='Nose':
        print(len(keypoints))
    keypoints_with_id = []
    for i in range(len(keypoints)):
        keypoints_with_id.append(keypoints[i] + (keypoint_id,))
        keypoints_list = np.vstack([keypoints_list, keypoints[i]])
        keypoint_id += 1
    detected_keypoints.append(keypoints_with_id)
#print(len(keypoints))
frameClone = image1.copy()
for i in range(nPoints):
    for j in range(len(detected_keypoints[i])):
        cv2.circle(frameClone, detected_keypoints[i][j][0:2], 5, colors[i], -1, cv2.LINE_AA)
#cv2.imshow("Keypoints",frameClone)
valid_pairs, invalid_pairs = getValidPairs(output)
personwiseKeypoints = getPersonwiseKeypoints(valid_pairs, invalid_pairs)
for i in range(17):
    for n in range(len(personwiseKeypoints)):
        index = personwiseKeypoints[n][np.array(POSE_PAIRS[i])]
        if -1 in index:
            continue
        B = np.int32(keypoints_list[index.astype(int), 0])
        A = np.int32(keypoints_list[index.astype(int), 1])
        cv2.line(frameClone, (B[0], A[0]), (B[1], A[1]), colors[i], 3, cv2.LINE_AA)
cv2.imshow("Detected Pose",frameClone)
cv2.waitKey(0)

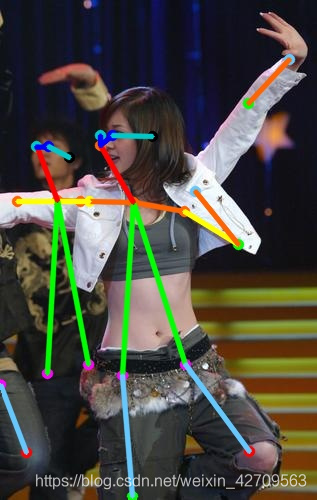

Find a single test picture , The test results are as follows ：

If you want to show the number of people detected in the running results , You can choose one or several key points in the human body as the basis for judgment , Readers can adjust according to their own situation , In this paper, the detection of human nose is used （Nose） As the basis for judging the number of people , Its running time and the number of people detected are as follows ：

Find three different pictures containing multiple characters to test , The number of people detected are 2,2,5, The running results are as follows ：
picture 1


picture 2


picture 3


That's all of the article , If this article helps you , You can give me a compliment , Add a focus on , thank you ！
