Use es to realize fuzzy search and search recommendation of personal blog

Catalog

Application blog

demand

Realization effect

Design

gitee Warehouse

---

Application blog

demand

Consider how to connect the blog system es technology .

1. How to synchronize database data to es Go to , To deal with mapping

2. Do fuzzy search + Intelligent recommended technology selection

3. Advantages and disadvantages of the selected technology

4. Highlight ( Select the title of the hit , Summary and its article content , excerpts 50 Characters )

5.JAVA_API Use

Realization effect

Two query methods are provided ——es and Mysql

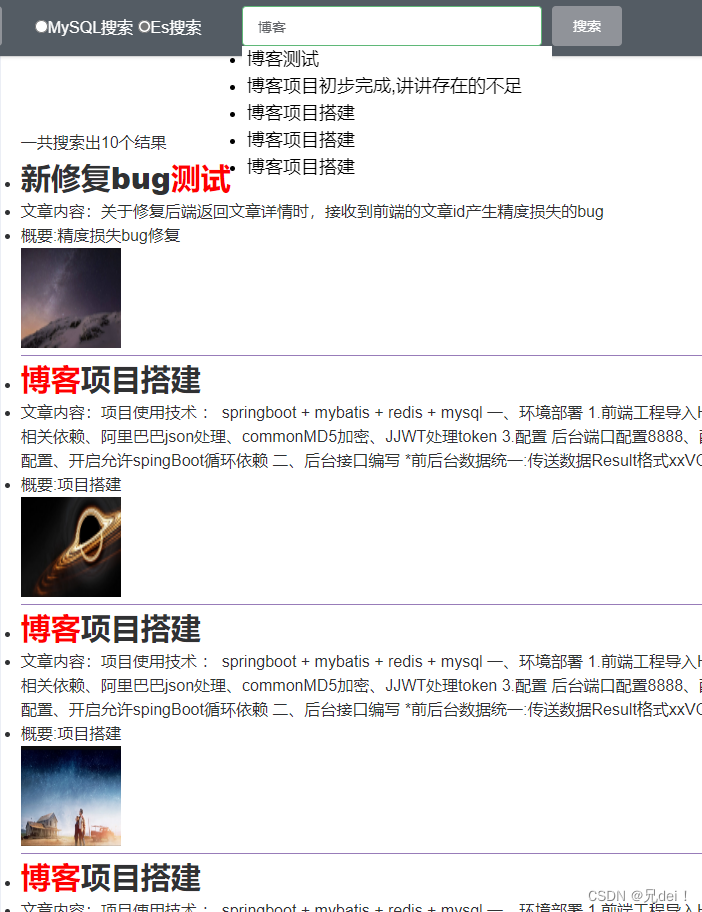

The following is a es, There are search recommendations ( Judge by prefix ), There are multiple fields ( Article title , Summary , Content ) And fuzzy query ( Intelligent error correction, etc )

mysql Inquire about : adopt like sentence

canal Complete data synchronization ( from mysql To es)

insert data



canal Complete the response here :

Use es Search has been able to search Got it





Design

1. How to synchronize database data to es Go to , To deal with mapping

1.1 Use Logstash Complete full synchronization ; Use Canal Complete incremental synchronization

1.2 The choice of word splitter : ik; filter : Lowercase filtering

1.3 Need to synchronize es Database table of : Article table , label , Classification table

2. Do fuzzy search + Intelligent recommended technology selection

2.1 Fuzzy search uses :fuzzy

2.2 Intelligent recommendation :context_suggester/complate_suggester

3. Advantages and disadvantages of the selected technology

3.1 fuzzy The advantages and disadvantages of fuzzy search need to be compared with prefix as well as wildcard Comparison .

First ,prefix The performance is very poor , There is no cache , And only supports prefix ambiguity , Poor function ; and wildcard Wildcards are not very practical , The level of intelligent error correction does not need to be too high , Taken together fuzzy Not bad in function , Good performance, too .

[fuzziness Set to 1 Just fine , Set to 2 The error rate is too high ]

3.2 context_suggester Is based on completion suggester An intelligent recommendation scheme , Adopted completion such es Unique type of , High performance based on memory . It can meet the prefix recommendation , And you can also make recommendations through classification and labels , More powerful . The disadvantage is that you need to consider when inserting data input The input values , Difficulty ratio completion suggester high .

[( For convenience ) You can set through the title Input value , Categories and labels are inserted directly suggest In the subfield of ,boost( The weight ) Not to be considered ]

4. Highlight ( Select the title of the hit , Summary and its article content , excerpts 50 Characters )

Problems encountered : At the beginning, we couldn't solve this problem , That is, the highlighted label has been displayed as a string when it is sent to the foreground

It's behind finally Select the corresponding label in the block and handle it .



5.JAVA_API Use

5.1 Import corresponding es Version dependency

5.2 Create it under the project es_service package

5.3 Create the corresponding es Indexed model class , Operation class

6.canal Sync data details

1.deployer

canal The service side , The configuration that needs to be done :

Get into deployer\conf\example, modify instance.properties

canal.instance.master.address=127.0.0.1:3306  # Database connection address
​
# Fill in the database information
canal.instance.dbUsername=root
canal.instance.dbPassword=root
canal.instance.connectionCharset = UTF-8
​
​
# table regex
canal.instance.filter.regex = .\*\\..\*

2.adapter

2.1 Go to the root directory , modify application.yml

server:
  port: 8081


  srcDataSources:
    defaultDS:
      url: jdbc:mysql://127.0.0.1:3306/test?useUnicode=true
      username: root
      password: root

  canalAdapters:
  - instance: example # canal instance Name or mq topic name
    groups:
    - groupId: g1
      outerAdapters:
      - name: logger
      - name: es7
        hosts: http://127.0.0.1:9200
        properties:
          mode: rest  #transport  or rest
#          # security.auth: test:123456 #  only used for rest mode
          cluster.name: elasticsearch  # The cluster name

2.2 Get into es7 Catalog , Create a configuration file corresponding to the database name

For example, here I want to put the database 'test' Data synchronization to Es, Then create it under this file test.yml

To write test.yml

dataSourceKey: defaultDS   # Of the source data source key, Corresponding SrcDataSources The value in
destination: example        #canal Of instance
groupId: g1                 # Smart synchronous correspondence groupId The data of
esMapping:
  _index: my_table   #es Index name of
  _id: _id              #es Of id   If not, you must configure the following pk
  upsert: true
  #pk: id
  sql: "select id as _id,name from my_table"
        #sql Statement writing --> id Must be set to _id
#  objFields:
#    _labels: array:;
  etlCondition: "where a.c_time>={}"
  commitBatch: 3000             # Submit batch size
​

Be careful :

es It must contain this index , And the mapping should be consistent with Mysql Match the fields

The pit in the process ：

1. The installation directory contains Chinese . start-up adapter Go straight back .

2.adapter Under the application.yml Inside ,es Corresponding Ip Didn't write well . If this place is not well written , When the data of the database is updated adapter There will be a reaction in the background , however es Data cannot be received

  - name: es7
    hosts: http://127.0.0.1:9200  # There is no http:// Will report a mistake   Illegal character in scheme name at index 0

3. Test whether the missing field index can

SELECT id AS id, createtime,desc,lv,NAME,price FROM product

mysql Table of :

es The index of ：

Deliberately missing two fields .

Experiments have proved that it is feasible ,es The index field of does not need to be followed mysql Keep consistent in quantity , But when matching, it will be case sensitive , So in es7 The configuration file in the folder sql Pay attention to the specification when writing statements .

4. Another pit ( How to synchronize multiple tables )

Try to write more yml file , Point to the same index ?

have a look sql Mapping description :

sql Support free combination of multi table Association ,  But there are certain limitations ：
​
1 The main table cannot be a subquery statement .
2 Only use left outer join That is, the leftmost watch must be the main watch .
3 The associated slave table cannot have multiple tables if it is a subquery .
4 Lord sql There can be no where Query criteria ( From the table subquery, you can have where Conditions but not recommended ,  May cause data synchronization inconsistency ,  For example, it was modified where Field contents in the condition ).
5 The association condition only allows the '=' Operations cannot have other constant judgments such as : on a.role_id=b.id and b.statues=1.
6 The association condition must have a field in the main query statement such as : on a.role_id=b.id Among them a.role_id  perhaps b.id Must appear in the Lord select In the sentence .
Elastic Search Of mapping  Properties and sql The value of the query should be one-to-one ( I won't support it  select *),  such as : select a.id as _id, a.name, a.email as _email from user,  among name Map to es mapping Of name field, _email take   Mapping to mapping Of _email field,  Here's the alias ( If there are aliases ) As the final mapping field .  there _id You can fill in the  _id: _id mapping .

After reading the above instructions , I want to try Select Add my connection to the main sentence id, The discovery was successful

  sql: "SELECT DISTINCT ma.id AS _id,mab.id as mab_id,ma.comment_counts,
        ma.create_date,ma.summary,ma.title,mab.content,
        ma.view_counts,ma.weight,ma.summary_img
        FROM ms_article ma
        LEFT JOIN ms_article_body mab ON ma.body_id = mab.id"

Try to connect all objects id Add to Select In the main sentence :

  sql: "SELECT DISTINCT ma.id AS _id,ma.comment_counts,
        ma.create_date,ma.summary,ma.title,mab.id  as mab_id,
        ma.view_counts,ma.weight,msu.account,mc.id as mc_id,
        mab.content ,mc.category_name ,mat.article_id as mat_id,
        ma.summary_img,mt.tag_name,mat.tag_id as mat_tag_id,
        msu.id as msu_id
        FROM ms_article ma
        LEFT JOIN ms_article_body mab ON ma.body_id = mab.id
        LEFT JOIN ms_category mc      ON mc.id=ma.category_id
        LEFT JOIN ms_article_tag   mat  ON mat.article_id = ma.id
        LEFT JOIN ms_tag  mt ON mt.id=mat.tag_id
        LEFT JOIN ms_sys_user msu ON ma.author_id= msu.id"

Now don't report mistakes . However, we still have to test whether the inserted data of multiple tables can be updated normally

1. No problem deleting .

2. No problem with modification

3. There was a problem with the insertion at the beginning , But after the investigation, it was found that , Add all the query fields or the corresponding fields .

For example, ,ma.body_id = mab.id Inside ma It's my main watch ,mab It's a subtable , At this time, I put select The main sentence should be corresponding to the main table body_id. So the part above me Sql There is still something wrong with the statement , After modification, it becomes :

  sql: "SELECT DISTINCT ma.id AS _id,ma.comment_counts,
        ma.create_date,ma.summary,ma.title,ma.body_id,
        ma.view_counts,ma.weight,msu.account,ma.category_id,
        mab.content ,mc.category_name ,mat.article_id as mat_id,
        ma.summary_img,mt.tag_name,mat.tag_id as mat_tag_id,
        ma.author_id as mau_id,mt.id as mt_it
        FROM ms_article ma
        LEFT JOIN ms_article_body mab ON ma.body_id = mab.id
        LEFT JOIN ms_category mc      ON mc.id=ma.category_id
        LEFT JOIN ms_article_tag   mat  ON mat.article_id = ma.id
        LEFT JOIN ms_tag  mt ON mt.id=mat.tag_id
        LEFT JOIN ms_sys_user msu ON ma.author_id= msu.id"

complete .

gitee Warehouse

Am I

It's not easy to make , Please give me more praise +star~
