Flexible IP network test tool -- x-launch

One 、IP Background of network test tools

1. Current status of network evaluation and testing

● Network evaluation and testing are widely needed

（1） Network quality assessment before service deployment

（2） End to end network performance optimization and verification

（3） Daily evaluation and verification of WAN line quality

（4）AP Router & Wireless terminal WIFI test

（5） Server network performance test

（6） Data Center Virtualization Platform performance test

● Lack of professional network performance testing tools

（1） Open source testing tools

  Poor performance ;

  Poor compatibility .

  No detailed test evaluation report

（2） Self developed testing tools

  Lack of test impartiality ;

  The scene is easy to be limited ;

  Poor compatibility .

2. Ideal network testing tool

（1） Rapid deployment , Efficient configuration

Easy and fast installation , There is no need to install additional system components ;

Click the mouse as few times as possible ;

It is convenient to modify the configuration .

（2） Compatibility is good.

Adapt to the mainstream operating systems at home and abroad ;

Suitable for mainstream CPU framework .

（3） The test results are accurate and consistent

The tolerance of each test result is small ;

The results of different software versions have little difference .

（4） A detailed statistical report

Summary statistical results based on the overall test ;

Historical detailed test data can be displayed .

Two 、IP Network testing tools X-Launch

1.X-Launch Network testing tools

（1） Software based network and application service performance testing tool

Double arm test ;

Single arm test .

（2） Measure the performance by testing the network traffic generated by the endpoint

TCP、UDP、PING;

voice 、 video 、HTTP、FTP、MAIL、 Multicast .

（3） Testing endpoint software can quickly install and deploy

2.X-Launch Test the deployment method

LAN \ Public network

（1） Control terminal （TestConsole）

Installed in Windows 7\10(64 position ）;

4 nucleus CPU,8 GB Memory .

150 GB Hard disk

（2） Test endpoint （TestPoint）

Software testing endpoint support Linux、Windows、Android、VxWorks、 All kinds of domestic OS

3.X-Launch Test the working principle

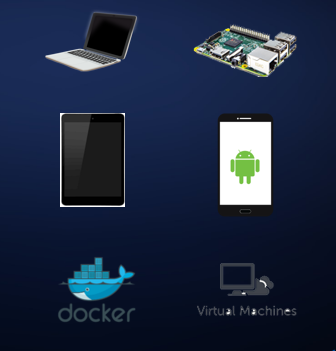

4. Flexible deployment in various terminals or systems

（1） Supported by OS

Windows;Linux;Android; domestic OS

（2） Supported by CPU framework

x86;PCPU;ARM;MIPS;Alpha; Network interface ; Ethernet ;WiFi;3G、4G、5G

（3） Network interface

Ethernet ;WiFi;3G、4G、5G

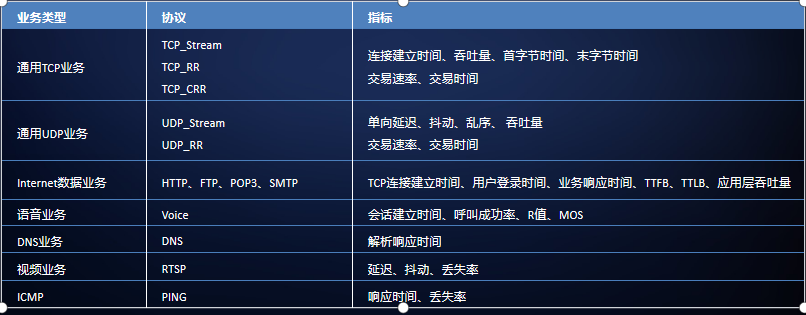

5. Have rich test business models

6. Test result chart and report

3、 ... and 、X-Launch Application scenarios

1. Rich application scenarios - wireless CPE test

● Wireless benchmark performance test ;

● Wireless attenuation test ;

● Wireless directivity test ;

● Wireless signal test ;

● Wireless competition test ;

● Wireless concurrency test ;

● Wireless distance test .

2. Rich application scenarios - Virtual switching network test

（1） On the virtualization platform VM Deployment in China TestPoint, test vSwitch Switching performance

（2） Common test indicators

throughput ; Time delay ; Loss rate ; Disorder

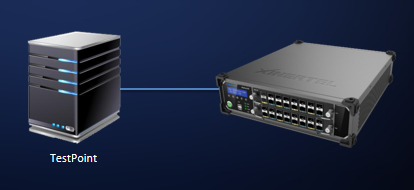

3. Rich application scenarios - Server network performance test

（1） Different types of servers OS Deployment in China TestPoint Realize flow loopback , Test the server network performance through the hardware meter

（2） Common test indicators

throughput ; Delay ; Packet loss rate

4. Rich application scenarios - Wireless network performance test

（1） Simulate real business TCP、UDP、 voice 、HTTP And so on

（2） Common test indicators

throughput 、 Delay 、 shake 、 Disorder ;;TCP Set up time ;HTTP First byte 、 The last byte is late ; voice MOS

5. Rich application scenarios - Performance test of remote network dedicated line

（1） Deploy end-to-end on the network TestPoint, Test the bearing index of the network in a one-to-one way

（2） Common test indicators

TCP\UDP throughput ; One way delay ; shake ; Disorder

Four 、X-Launch Success stories

1. Success stories - Some big NEM wireless CPE test

（1） Test challenge

International competition is becoming increasingly fierce , Scientific and technological warfare is emerging one after another , In the field of network performance testing, it is also necessary to achieve self-control , Ensure the sustainable development of the overall business :

Within the tolerance of the test results ;

The test configuration can be replaced .

（2） Xinertai solution

Windows Test the control end , Test endpoint support Windows、Linux as well as Android, The following common test protocols are supported :

TCP;UDP;PING;HTTP;FTP;RTSP;Voice

（3） Customer revenue

Autonomous and controllable testing ; The test function is updated quickly ; Better matching of requirements

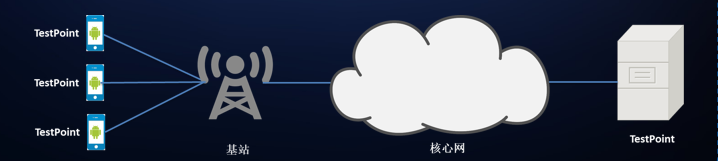

2. Success stories -5G Dedicated line test

（1） Test challenge

A hospital has opened telecommunications 5G A dedicated line , The following tests are required ：

5G End to end slice performance verification , Usability 、 Health 、 Packet loss rate 、 Up and down bandwidth 、 Delay, jitter, etc ;

Yes 5G The end-to-end slicing scenario verifies the uplink and downlink of large traffic ( video 、 Image );

5G End to end pressure test .

（2） Xinertai solution

Windows The test control end and test endpoint are deployed in the computer room of the hospital network center ,Android The mobile phone runs the test endpoint software to test in the hospital area .

The test protocol used is ：

TCP_TP;UDP_STREAM

（3） Customer revenue

Verified 5G Availability of dedicated lines in hospitals ;

Verified 5G Dedicated line end-to-end slicing performance and usage scenarios ;

Verify whether the use scope of the dedicated line is controllable .

5、 ... and 、 Competitive analysis
