[FreeRTOS] 10 event flag group

Let's talk about freeRTOS Event flag group . It is also a mechanism for communication and synchronization between tasks , And semaphores have some similar functions , But it has its own characteristics .

1） What is an event flag group

An event flag group has multiple event bits , Each event bit represents the flag of an event .

For example, we use the event flag group bit0 Indicates an event A、bit1 Indicates an event B、bit2 Indicates an event C, Then this event flag group can at least represent 3 Whether events occurred .

We talked about semaphores before , It is used for signal synchronization , It can only indicate the presence or absence of a resource ; And the event flag group , It can represent the presence or absence of multiple resources at the same time .

The above example , This event flag group is equivalent to 3 Functions of two binary semaphores , Tasks can wait on an event flag group at the same time A、B、C Three events .

The task is waiting for the event of the event flag group , You can choose to wait for one or several event bits in the Group . For example, in the above example , Although the event flag group indicates A、B、C Three events , But the user can set it to only wait A and B.

Besides , Another difference between event flag group and semaphore , It can choose whether to clear the event bit when waiting for an event bit . And with semaphores , When a semaphore is obtained , The semaphore count will automatically decrease 1.

2）FreeRTOS Event flag group

freeRTOS Event flag group provided , By data type EventGroupHandle_t Definition . It needs to be confirmed before use FreeRTOSConfig.h In file configUSE_16_BIT_TICKS The definition of this macro , If defined as 1, An event flag group can store up to 8 Event bits , If you define bits 0, You can store 24 Event bits .

So let's talk about that freeRTOS Some functions commonly used in the operation event flag group .

Create event flag group ：

EventGroupHandle_t xEventGroupCreate( void );// Create an event flag group , What is returned is the event standard group handle that was successfully created

This function is actually a dynamically created event flag group , If you want to use static creation , Need to use xEventGroupCreateStatic() function .

Set the event bit ：

The most important thing is xEventGroupSetBits()、xEventGroupClearBits() Two functions , The function is to place the event 1 Or Qing 0. The function prototype is ：

EventBits_t xEventGroupClearBits(EventGroupHandle_t xEventGroup, const EventBits_t uxBitsToClear); // clear 0 Event flag set ,xEventGroup Standard group handle for the event to operate ,uxBitsToClear Is the event bit to be cleared , You can clear multiple bits at the same time

EventBits_t xEventGroupSetBits(EventGroupHandle_t xEventGroup, const EventBits_t uxBitsToSet ); // Set the event flag group to 1,xEventGroup Standard group handle for the event to operate ,uxBitsToClear To set 1 The event bit

The above two functions can only be used in tasks , If you want to set the event flag group in the interrupt , To use the suffix ISR A set of functions ：xEventGroupSetBitsFromISR() and xEventGroupClearBitsFromISR().

Wait event bit ：

EventBits_t xEventGroupWaitBits(

EventGroupHandle_t xEventGroup,  /* Event flag group to wait */

const EventBits_t uxBitsToWaitFor, /* Event bits to wait */

const BaseType_t xClearOnExit,  /* Whether the waiting event bit is cleared ,pdTRUE For clearing ,pdFALSE unchanged */

const BaseType_t xWaitForAllBits,  /* Whether to wait for all bits ,pdTRUE For waiting uxBitsToWaitFor All bits specified ,pfFALSE as long as uxBitsToWaitFor One of the designated locations 1 Just go back to */

const TickType_t xTicksToWait );  /* Waiting timeout */

Get the value of the event flag group ：

EventBits_t xEventGroupGetBits( EventGroupHandle_t xEventGroup );// Get the value of the event standard group （ It doesn't change its value ）

You need to use xEventGroupGetBitsFromISR This function .

3） Programming test

Let's use an example to demonstrate the use of event flag groups .

As in previous issues , We still use cubemx Establish three tasks , Priorities vary .

Generate keil engineering ：

Write the code as follows , The first is the creation of event flag group ：

Let's write the task with the lowest priority first DefaultTask Send events in , The first 1s Send event bits bit0, The first 2s Occurrence bit bit1, So circular ：

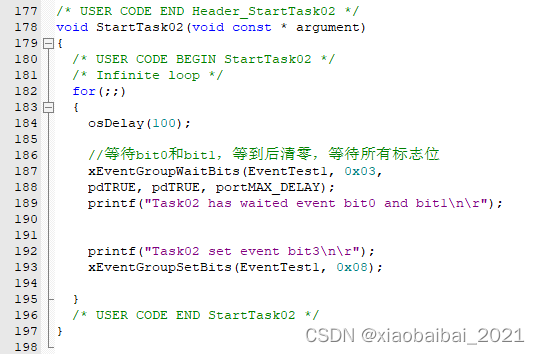

In medium priority tasks Task02 in , Wait event bit bit0 and bit1, Wait until later , Zero clearing , And send event bits bit3：

On high priority tasks Task03 in , Wait event bit bit3, Wait until after not clear ：

The running result of this program is shown in the figure below ：

At the beginning , The two tasks with higher priority are waiting for events , Only the lowest priority tasks DefaultTask Can run ;

The first 1s when DefaultTask Sent the event bit0, The first 2s when DefaultTask Sent the event bit1;

because Task02 It is set to wait at the same time bit0 and bit1, therefore , To DefaultTask End of hair bit1 when ,Task02 Until it needs all the event bits , Wait until the event is clear 0;

then ,Task02 Event bits sent bit3;

Task03 Waiting to arrive bit3 after , Because the setting is not clear , The bit3 Event bit it is always valid ; therefore Task03 Then the loop runs to the wait event bit bit3 Time will not be blocked , Instead, return to execution immediately . Will keep printing out Task03 has waited event bit3.

Okay , That's all for this section .
