Use steps of Charles' packet capturing

Charles Use steps

1、 install Charles

Mac Version download link ：
link :https://pan.baidu.com/s/1ifhZi_uvitdG3aqru-RNtw
password :spgz

2、 To configure Charles

Configure the content of the connection that needs to be filtered , This link just needs to capture packets APP Domain name connection for . If you don't know the domain name , It's OK without configuration . It doesn't affect bag grabbing .

configure port . This port number should be consistent with the agent on the mobile terminal .

3、 Configure mobile agent

Check the local network of the computer IP Address , Two ways .

a） Check from the web preferences , Inside the red box is the current network IP Address .

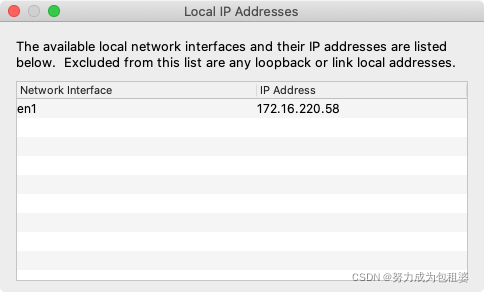

b) Choose Charles-help-local IP address View the current IP Address

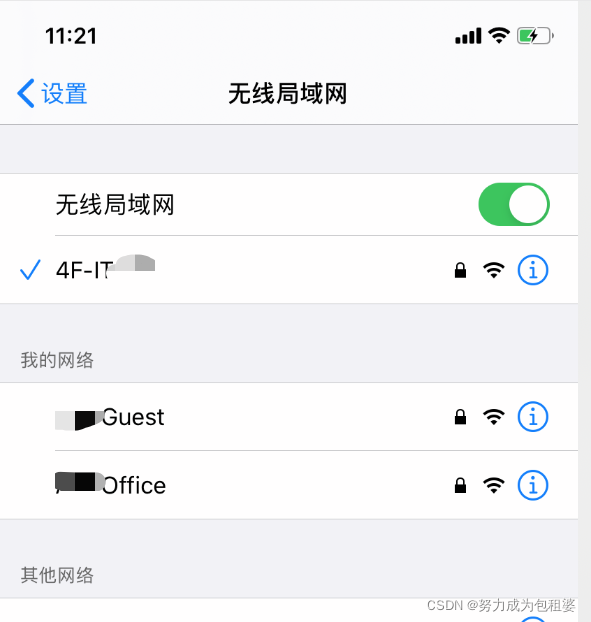

Get IP after , You can configure the mobile agent . Turn on the phone settings - WLAN

Select the currently connected network , Click to enter the details . This network does not have to be the same as the computer . Pro testing can use packet capture .

Choose Configure agent , Enter the proxy settings , Select Manual , Then fill in the server address and port . These two configurations are very important . Determines whether the mobile phone can be connected to Charles.

4、 Open the bag you need APP、 View the captured records

The following is the book flag novel on the mobile phone APP after , Grab the content of the filtered domain name .
Open the details of this domain name to view the information of each interface , Include the interface name , Interface path , Request mode , Parameters, etc. .

What we use here is structure-contents Mode to view the captured information .
